Product Model

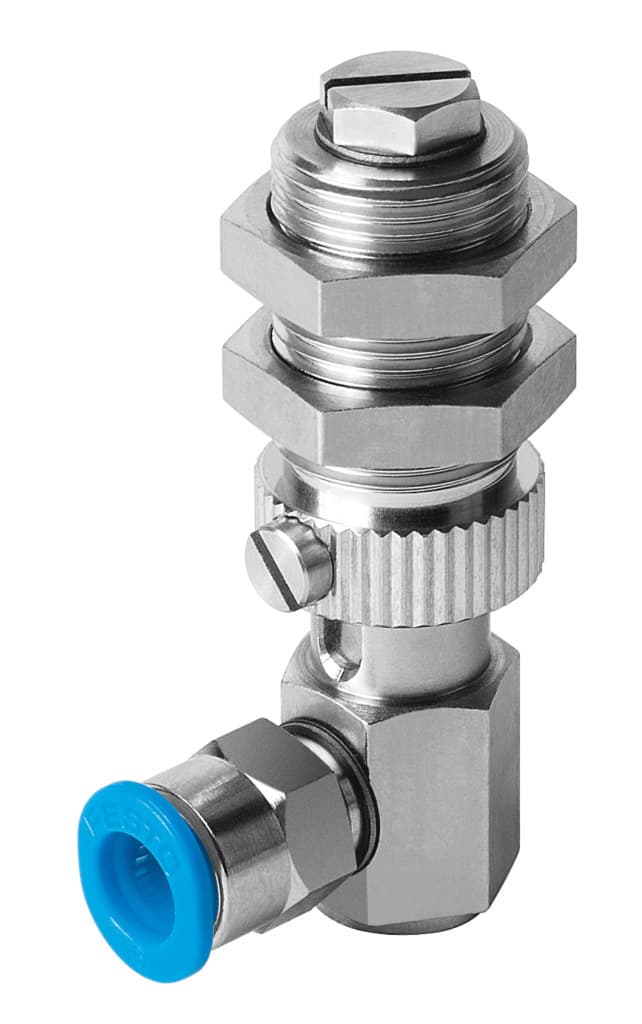

esh-hd-3-qs
Selling Points
- 1Height Compensation: 6mm height compensator for precise suction-cup positioning.
- 2Robust Design: Vacuum connection at side with compensator secured by two hexagonal nuts.
- 3Versatile Mounting: Vertical mounting position for flexible application setup.
- 4High-Quality Materials: NBR material seals and steel material retaining brackets for durability.
- 5Compliance Standards: Meets ISO 8573-1:2010 and VDMA24364-A1-L standards for quality assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 6mm | Nominal width | 3.3mm |
Volume | 0.573cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 3 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
Product weight | 46g | Type of mounting | With lock nut |
Suction cup mounting | M4 | Vacuum connection | QS-6 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189237 |
Specifications may be subject to change without notice
