Product Model

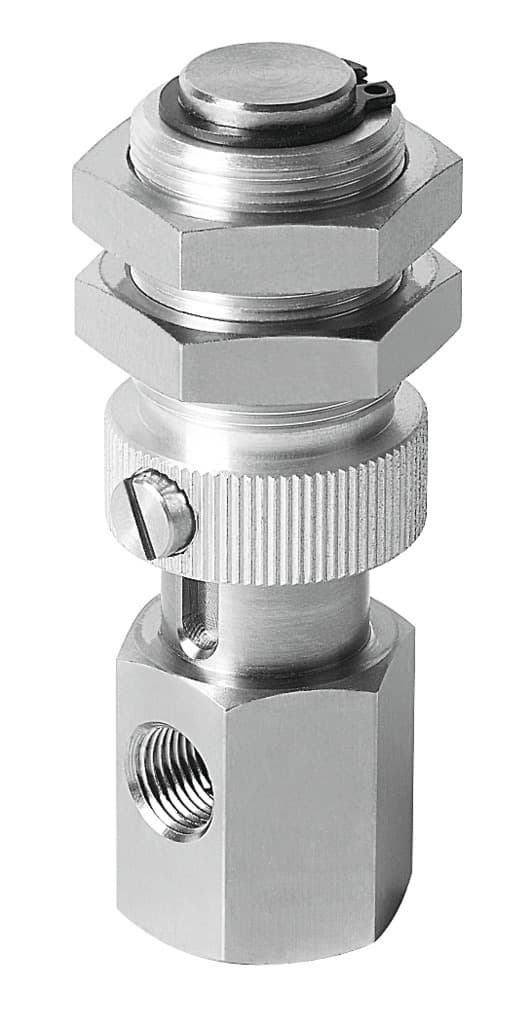

esh-hd-5-g
Selling Points
- 1The ESH-HD-5-G features a 10 mm height compensator for precise suction cup positioning.
- 2Constructed with high-quality materials including aluminum, brass, nickel-plated brass, POM, tempered steel, and high-alloy steel.
- 3Equipped with a lock nut for secure mounting and a vertical assembly position.
- 4Includes a G1/8 vacuum connection for optimal suction performance.
- 5RoHS-compliant and meets VDMA24364-A1-L LABS (PWIS) conformity standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10mm | Nominal width | 8.5mm |
Volume | 2.072cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 5 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 195g | Type of mounting | With lock nut |
Suction cup mounting | M10 | Vacuum connection | G1/8 |
Note on materials | RoHS-compliant | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
Manufacturer ID | 189241 |
Specifications may be subject to change without notice
