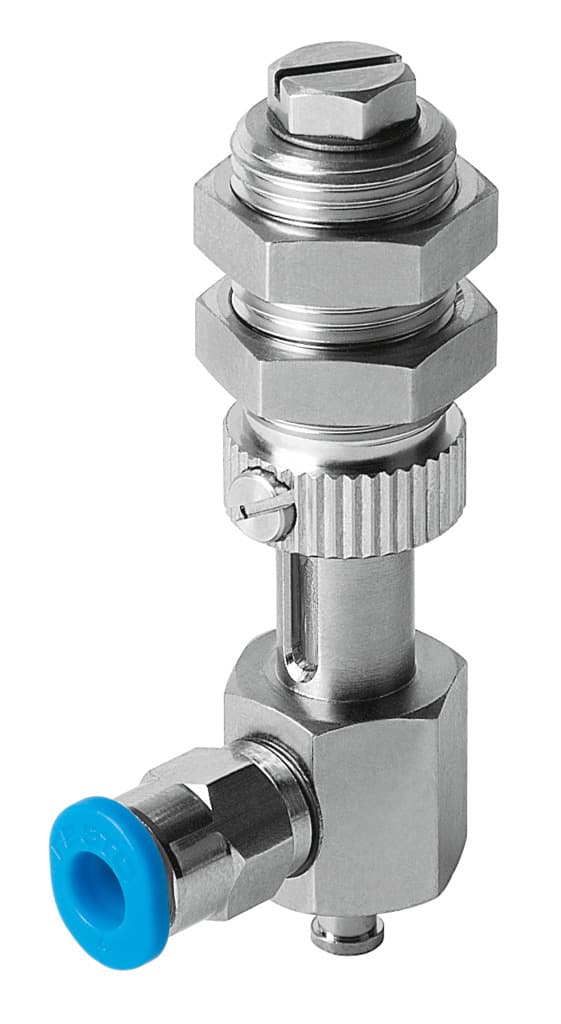

Product Model
esh-hdl-1-qs
Selling Points
- 1Height Compensation: 10 mm height compensator for precise positioning.
- 2Compact Design: Nominal width of 3 mm for space-efficient mounting.
- 3Robust Construction: Made from RoHS-compliant materials with NBR seals and aluminum retaining brackets.
- 4Versatile Mounting: With lock nut and suction cup mounting, suitable for vertical applications.
- 5Temperature Stability: Operates between 0°C and 60°C for consistent performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10mm | Nominal width | 3mm |
Volume | 0.272cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 1 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
Product weight | 29g | Type of mounting | With lock nut |
Suction cup mounting | Diameter 3 mm | Vacuum connection | QS-4 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189243 |
Specifications may be subject to change without notice
