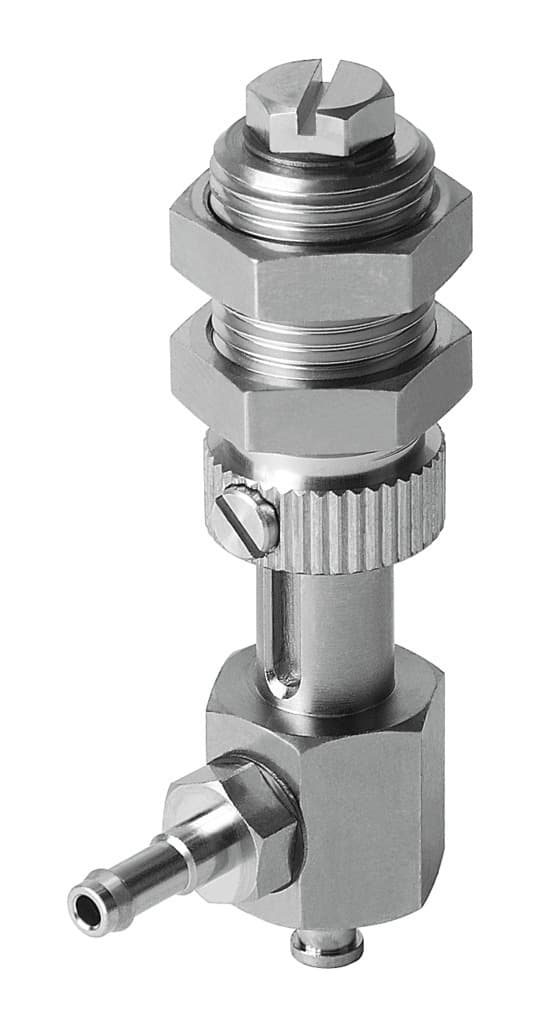

Product Model
esh-hdl-2-pk
Selling Points
- 110MM Height Compensator: Ensures stable suction even with varying surface heights.
- 2Vacuum Connection at Side: Convenient design for easy installation and maintenance.
- 3Secure Hexagonal Nuts: Provides robust and reliable mounting for the compensator.
- 4Vertical Mounting Position: Designed for efficient use in various industrial applications.
- 5High-Alloy Steel Construction: Offers durability and resistance to corrosion and stress.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10mm | Nominal width | 2.2mm |
Volume | 0.138cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 2 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 32g | Type of mounting | With lock nut |
Suction cup mounting | Diameter 4 mm | Vacuum connection | PK-4 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189246 |
Specifications may be subject to change without notice
