Product Model

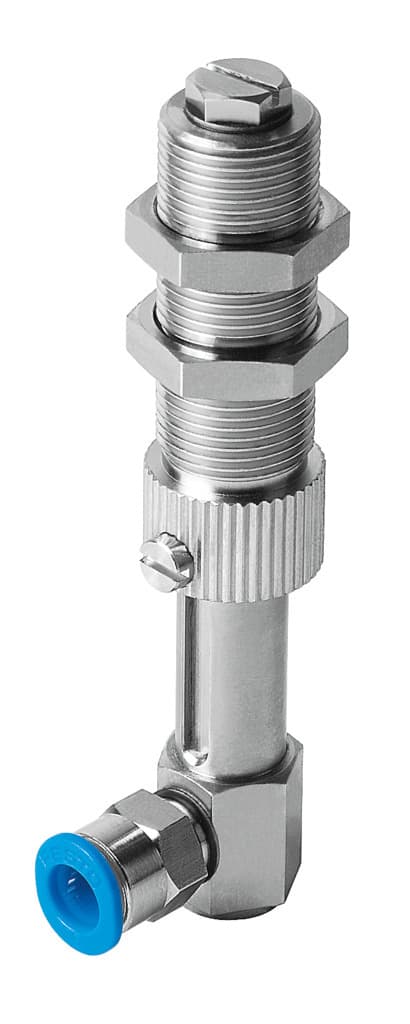

esh-hdl-4-qs
Selling Points
- 1Precision Height Compensation: 20mm height compensator ensures stable suction cup positioning.
- 2Corrosion-Resistant Materials: Made from RoHS-compliant materials with low corrosion stress (CRC 1).
- 3Versatile Mounting Options: Vertical mounting with lock nut and M6 suction cup mounting.
- 4Efficient Vacuum Connection: QS-6 vacuum connection for reliable operation.
- 5Compact Design: Volume of 0.37 cm³ for space-efficient installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 20mm | Nominal width | 5mm |
Volume | 0.37cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 4 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
Product weight | 65g | Type of mounting | With lock nut |
Suction cup mounting | M6 | Vacuum connection | QS-6 |
Note on materials | RoHS-compliant | Seals material | NBR Steel |
Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189249 |
Specifications may be subject to change without notice
