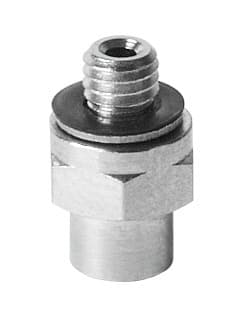

Product Model
esh-he-2-m5
Selling Points
- 1Nominal size of 2 mm, volume of 0.036 cm³.
- 2Vertical assembly position with vacuum connection at top.
- 3Direct screw-in fitting via external (male) thread.
- 4Conforms to RoHS and has a low corrosion stress classification (CRC 1).
- 5Suitable for atmospheric air based on ISO 8573-1:2010, operating temperature -10 to 60 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 2mm | Volume | 0.036cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 2 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 3g |
Type of mounting | With external thread Via vacuum connection | Suction cup mounting | Diameter 4 mm |
Vacuum connection | M5 | Note on materials | RoHS-compliant |
Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
Manufacturer ID | 189254 |
Specifications may be subject to change without notice
