Product Model

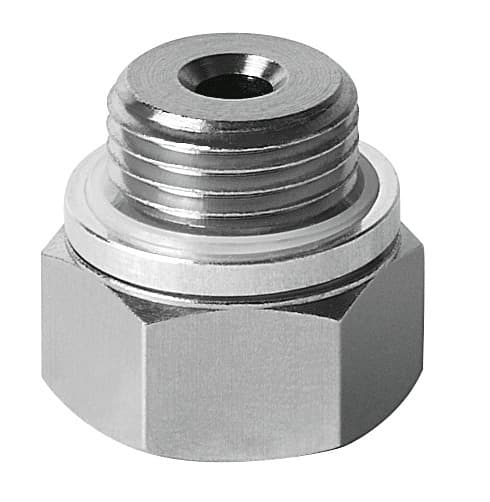

esh-he-3-g1/8
Selling Points
- 1Nominal size of 3 mm and volume of 0.106 cm³ for efficient use.
- 2Designed for vertical mounting position, ensuring stable operation.
- 3Classified as CRC 1, suitable for applications with low corrosion stress.
- 4Made from RoHS-compliant materials including wrought aluminum alloy, NBR, and POM.
- 5With external (male) thread for direct screw-in fitting, simplifying installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 3mm | Volume | 0.106cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 11g |
Type of mounting | With external thread Via vacuum connection | Suction cup mounting | M4 |
Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
Manufacturer ID | 189255 |
Specifications may be subject to change without notice
