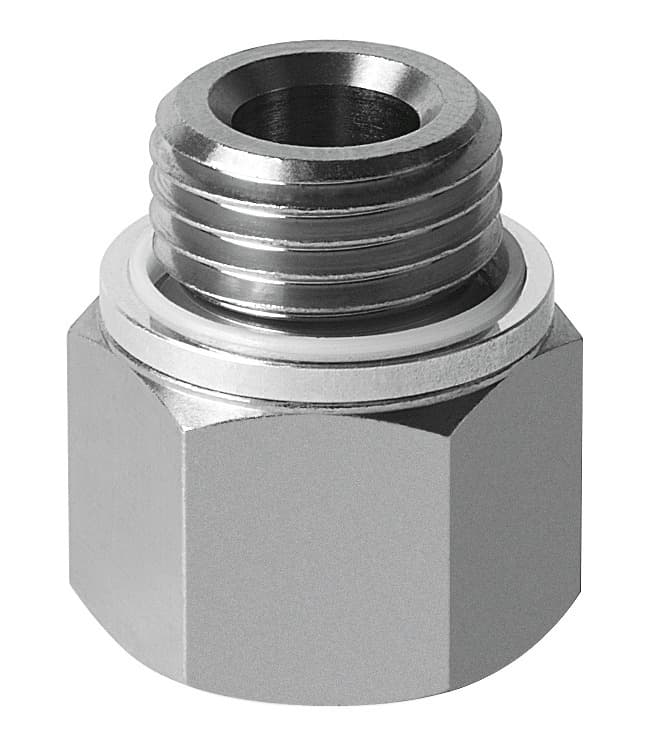

Product Model
esh-he-5-g1/4
Selling Points
- 1Designed with a vacuum connection at the top for secure mounting.
- 2Compliant with RoHS and featuring low corrosion stress (CRC 1).
- 3Compatible with external threads and M10 suction cups.
- 4Operates between -10°C and 60°C, ensuring durability in various environments.
- 5Weighs only 24 grams, making it lightweight and easy to handle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal width | 7mm | Volume | 1.227cm3 |
Mounting position | Any | Structural design | Vacuum connection at top |
Classification of suction cup holder | Size 5 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 60°C | Product weight | 24g |
Type of mounting | With external thread Via vacuum connection | Suction cup mounting | M10 |
Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
Seals material | Wrought aluminum alloy NBR POM Steel | Retaining bracket material | Tempered steel |
Manufacturer ID | 189257 |
Specifications may be subject to change without notice
