Product Model

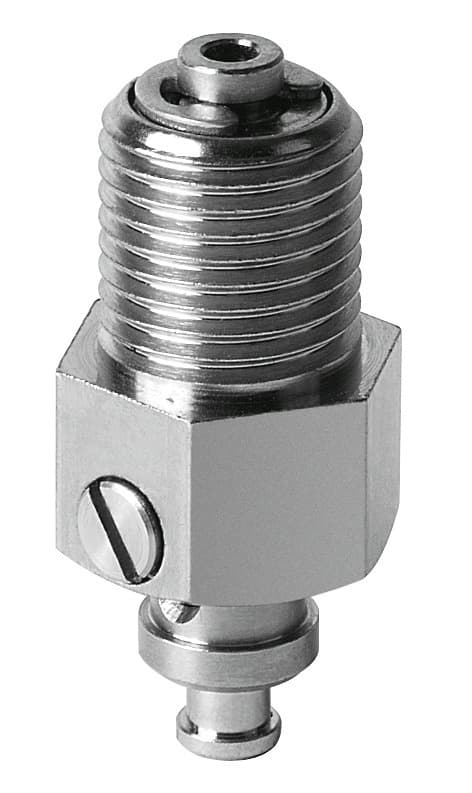

esh-hf-2-m10x1
Selling Points
- 1Height Compensator: The ESH-HF-2-M10X1 includes a 2.6 mm height compensator for precise mounting.
- 2Vertical Mounting: Designed for vertical mounting with a nominal size of 2 mm and volume of 0.09 cm³.
- 3Low Corrosion Stress: Classified as CRC Class 1, indicating low corrosion stress in harsh environments.
- 4Temperature Range: Operates between -10°C and 60°C, ensuring versatility in various conditions.
- 5RoHS Compliant: Meets RoHS standards, ensuring compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 2.6mm | Nominal width | 2mm |
Volume | 0.09cm3 | Mounting position | Vertical |
Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 2 |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
Product weight | 14g | Type of mounting | With external thread Via vacuum connection |
Suction cup mounting | Diameter 4 mm | Vacuum connection | M10x1 |
Note on materials | RoHS-compliant | Seals material | NBR POM |
Retaining bracket material | Tempered steel | Manufacturer ID | 189261 |
Specifications may be subject to change without notice
