Product Model
esnu-50- -
Selling Points

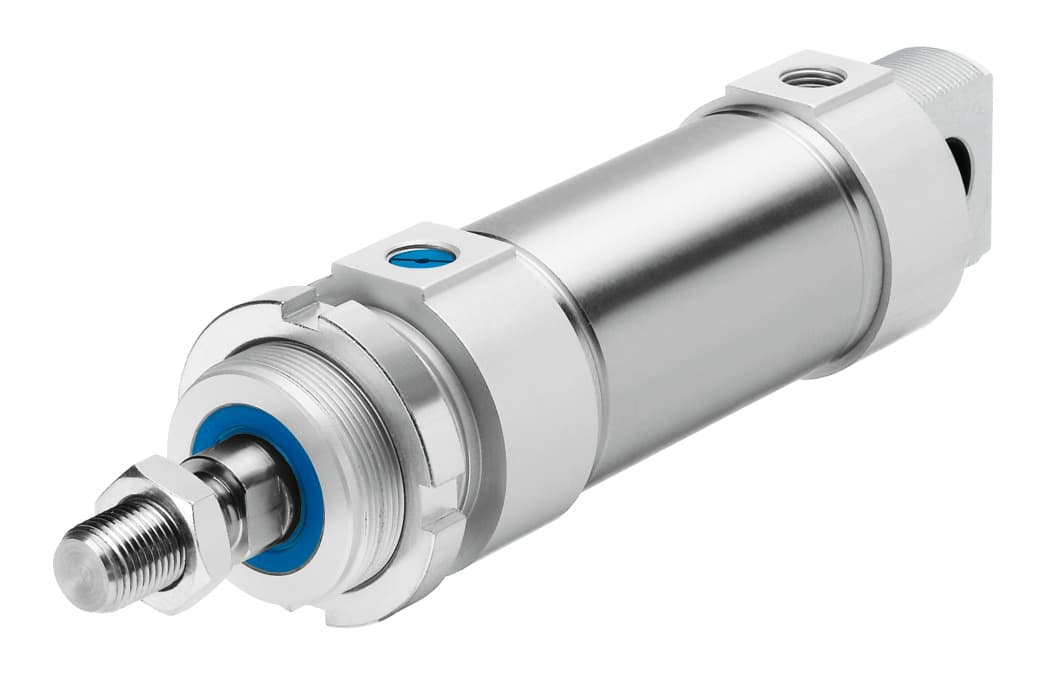

- 1The Festo ESNU-50- - pneumatic cylinder offers a stroke length of 1 mm to 50 mm, making it versatile for a wide range of applications.
- 2Equipped with elastic cushioning rings/plates at both ends, this cylinder ensures smooth operation and reduces noise and vibration.
- 3The cylinder features a high-alloy steel piston rod and a high-alloy stainless steel cylinder barrel, providing excellent corrosion resistance and durability.
- 4With an operating pressure range of 0.12 MPa to 1 MPa, this cylinder is suitable for various operating conditions, including low to high-pressure applications.
- 5The ESNU-50- - cylinder is designed for single-acting operation with compressed air, ensuring reliable and efficient performance in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Stroke | 1mm 50mm | Piston diameter | 50 mm |
Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
Structural design | Piston Piston rod Cylinder barrel | Position sensing | For proximity sensor |
Variants | Increased chemical resistance Extended external thread piston rod Internal thread on piston rod Special thread on piston rod Piston rod with external thread shortened at one end Extended piston rod Axial supply port Uniform, slow movement Low friction Piston rod at one end | Operating pressure | 1.2bar 10bar |
Mode of operation | Pushing Single-acting | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -20°C 120°C |
Theoretical force at 6 bar, advancing | 976N 1011N | Moving mass at 0?mm stroke | 413g |
Additional moving mass per 10?mm stroke | 25g | Basic weight with 0?mm stroke | 1087g |
Additional weight per 10?mm stroke | 40g | Type of mounting | With accessories |
Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
Piston rod material | High-alloy steel | Material of cylinder barrel | High-alloy stainless steel |
Manufacturer ID | 194004 |
Specifications may be subject to change without notice
