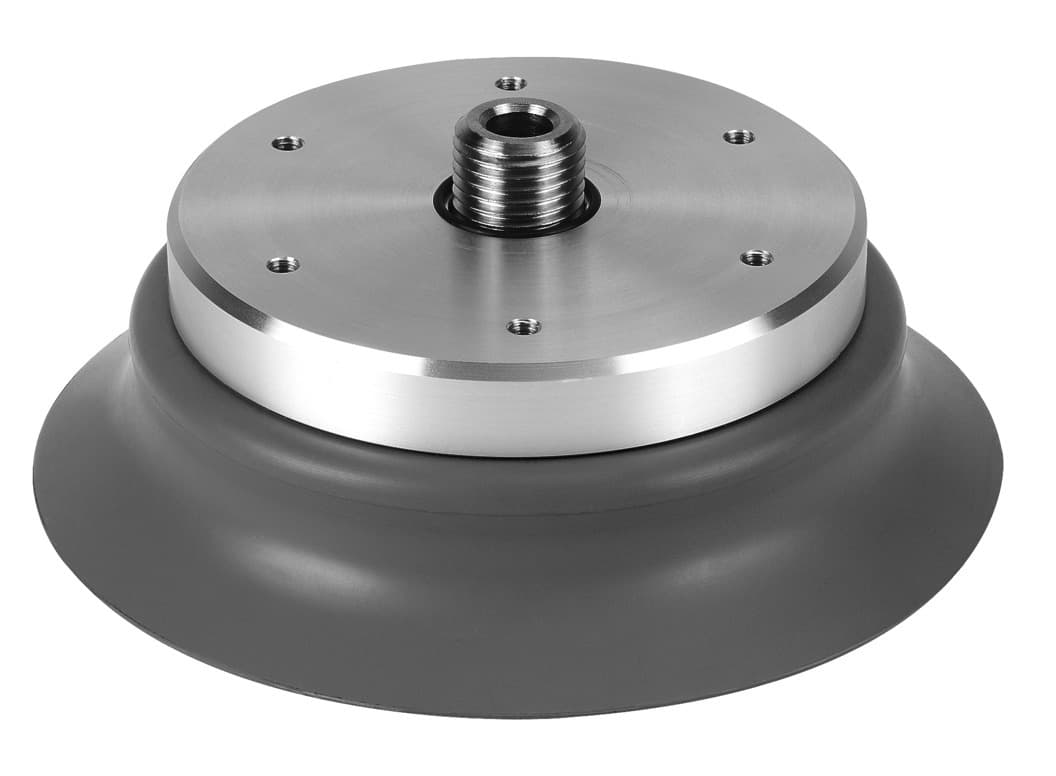

Product Model
ess-100-ef
Selling Points
- 1High-temperature resistant up to +200°C for various industrial applications.
- 2Durable design with fluoroelastomer (FPM) suction cup and polyoxymethylene (POM) trunnion.
- 3Versatile mounting options including internal thread, external thread, and push-in connector.
- 4Suitable for materials with oily surfaces due to insensitivity to deep-drawing oils.
- 5Compliant with RoHS standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 200mm | Nominal width | 6mm |
Suction cup diameter | 100mm | Suction cup volume | 84.66cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 5 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
For use in the food industry | See supplementary material information | Ambient temperature | -10°C 200°C |
Holding force at nominal operating pressure | 440.8N | Lateral force at nominal operating pressure | 254.5N |
Product weight | 228g | Type of mounting | Via vacuum connection |
Vacuum connection | M10 | Color | Gray |
Shore hardness | 60 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
Note on materials | RoHS-compliant | Suction cup material | FPM |
Manufacturer ID | 189365 |
Specifications may be subject to change without notice
