ess-100-gt-g1/4

Selling Points

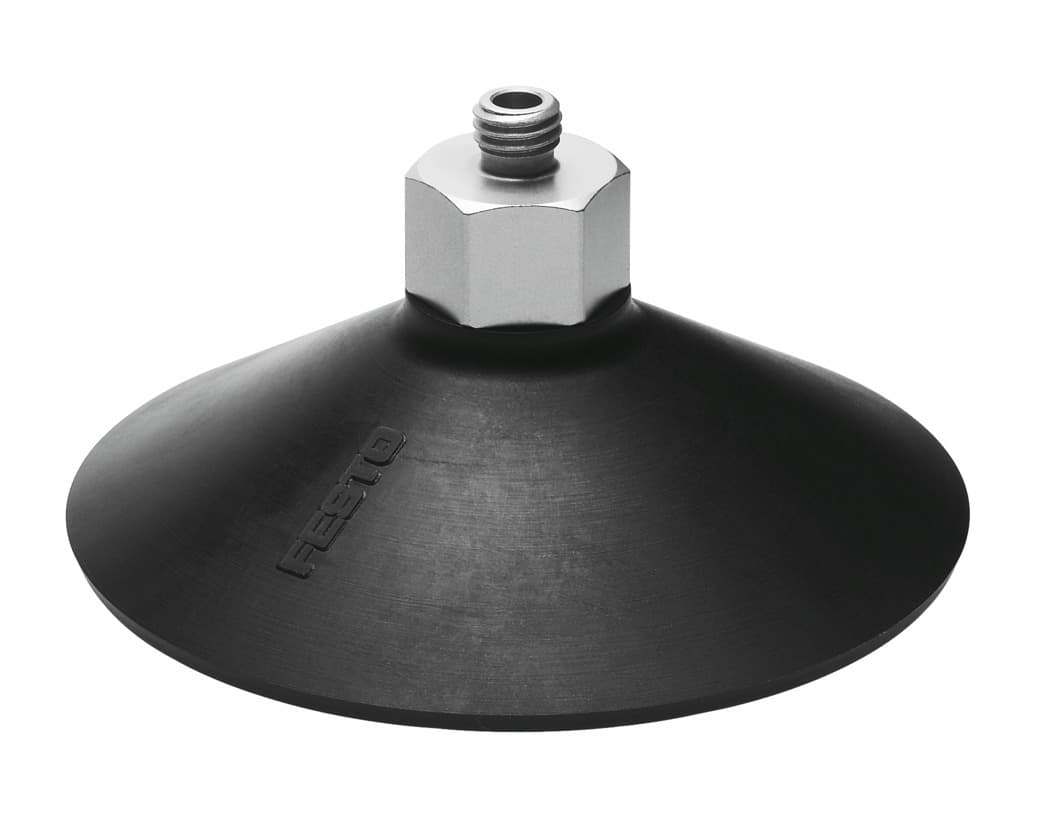

• 1The Festo 100mm Suction Cup ESS-100-GT-G1/4 features a height compensator for suction-cup holders, ensuring optimal performance across different workpiece sizes. With a minimum workpiece radius of 135 mm, it is versatile for various applications.
• 2This suction cup boasts a nominal size of 5.5 mm and a suction cup diameter of 100 mm, providing a robust and reliable vacuum connection. The round, bell-shaped design enhances its operational efficiency.
• 3The ESS-100-GT-G1/4 operates within a wide temperature range of -10 °C to 80 °C, making it suitable for various industrial environments. It also meets the corrosion resistance class CRC 2, ensuring moderate corrosion stress.
• 4With a breakaway force at 70% vacuum of 297 N and a holding force at nominal operating pressure of 375 N, this suction cup offers exceptional holding power. The maximum tightening torque for mounting thread is 11 Nm, ensuring secure installation.
• 5The Festo 100mm Suction Cup ESS-100-GT-G1/4 is made from Vulkollan material, which provides excellent durability and resistance to atmospheric air based on ISO 8573-1:2010. It is also RoHS-compliant and features a reddish-brown color with a shore hardness of 72 +/- 5.
