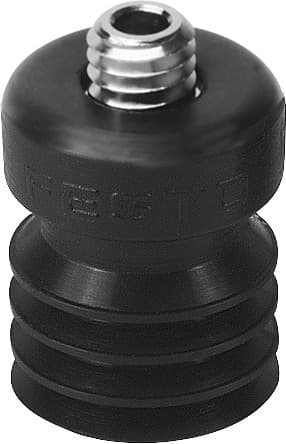

Product Model
ess-10-cn
Selling Points
- 1High-Quality Nitrile Rubber Suction Cup: Durable and resistant to chemicals and extreme temperatures.
- 2Efficient Vacuum Connection: M4 threaded pneumatic port for easy and secure attachment.
- 3Versatile Mounting Options: Internal thread, external thread, or push-in connector for versatile mounting.
- 4Low-Corrosion Stress: CRC Class 1 ensures minimal corrosion stress in various environments.
- 5Compact Design: Round bellows shape with 3.5 convolutions for precise workpiece handling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 3.3mm | Min. workpiece radius | 25mm |
Nominal width | 2mm | Suction cup diameter | 10mm |
Suction cup volume | 0.29cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Classification of suction cup holder | Size 3 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 3.9N |
Lateral force at nominal operating pressure | 1.5N | Product weight | 1.6g |
Type of mounting | Via vacuum connection | Vacuum connection | M4 |
Color | Black | Shore hardness | 50 +/- 5 |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 189398 |
Specifications may be subject to change without notice
