Product Model

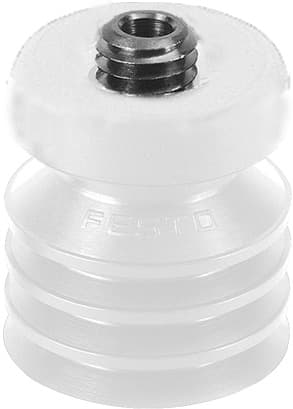

ess-10-cs
Selling Points
- 1High Suction Force: The ESS-10-CS offers a nominal operating pressure of -0.7 bar, ensuring strong and reliable vacuum performance.
- 2Durable Design: Made from VMQ (Silicone) material, this suction cup is corrosion-resistant and suitable for a wide range of operating temperatures (-30°C to 180°C).
- 3Versatile Use: Easily interchangeable and compatible with any assembly position, making it suitable for various applications.
- 4Precise Handling: With a minimum workpiece radius of 25 mm and a nominal width of 2 mm, it provides precise handling and control.
- 5Easy Installation: The transparent design allows for easy visual inspection, and it can be fastened via a vacuum connection (M4).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 3.3mm | Min. workpiece radius | 25mm |
Nominal width | 2mm | Suction cup diameter | 10mm |
Suction cup volume | 0.29cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Classification of suction cup holder | Size 3 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 3.9N |
Lateral force at nominal operating pressure | 1N | Product weight | 1.6g |
Type of mounting | Via vacuum connection | Vacuum connection | M4 |
Color | Transparent | Shore hardness | 50 +/- 5 |
Material of screwed plug | Brass, nickel-plated | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 189399 |
Specifications may be subject to change without notice
