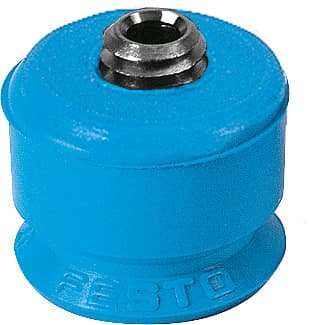

Product Model
ess-10-su
Selling Points
- 1Durable under tough operating conditions.
- 2Effective on oily surfaces and various materials.
- 3Easily interchangeable and customizable for different workpieces.
- 4Compliant with CRC Class 1 for low-corrosion stress.
- 5Internal thread, external thread, or push-in connector for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 30mm | Nominal width | 2mm |
Suction cup diameter | 10mm | Suction cup volume | 0.05cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 3 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
Holding force at nominal operating pressure | 3.9N | Lateral force at nominal operating pressure | 7N |
Product weight | 1.5g | Type of mounting | Via vacuum connection |
Vacuum connection | M4 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 189285 |
Specifications may be subject to change without notice
