Product Model

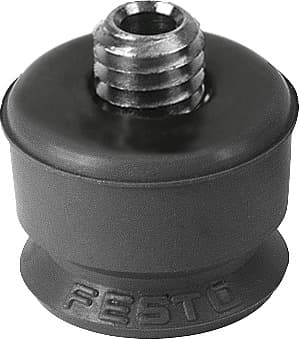

ess-15-sf
Selling Points
- 1The Festo ESS-15-SF offers a holding force of 8.5 N at nominal operating pressure, ensuring secure grip on workpieces.
- 2Made from FPM material, this suction cup is corrosion-resistant and suitable for use in the food industry.
- 3With a diameter of 15mm and a volume of 0.208 cm³, the ESS-15-SF is designed for precision and efficiency.
- 4The suction cup can be mounted via a vacuum port with an M4 connection, providing flexibility in installation.
- 5Operable from -10 °C to 200 °C, making it suitable for various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 35mm | Nominal width | 2mm |
Suction cup diameter | 15mm | Suction cup volume | 0.208cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 3 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
For use in the food industry | See supplementary material information | Ambient temperature | -10°C 200°C |
Holding force at nominal operating pressure | 8.5N | Lateral force at nominal operating pressure | 10.5N |
Product weight | 1.9g | Type of mounting | Via vacuum connection |
Vacuum connection | M4 | Color | Gray |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated |
Note on materials | RoHS-compliant | Suction cup material | FPM |
Manufacturer ID | 189292 |
Specifications may be subject to change without notice
