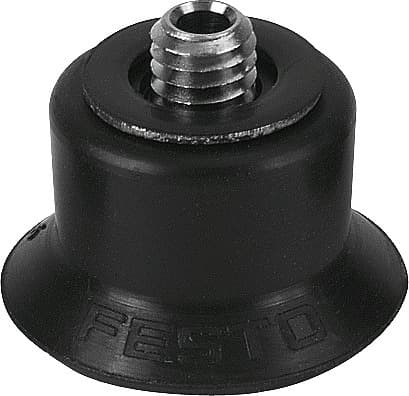

Festo ESS-20-EN Suction Cup - High-Quality Vacuum Solution

Selling Points

1The Festo ESS-20-EN suction cup is designed for effortless interchangeability, ensuring quick and efficient setup.
2With a minimum workpiece radius of 30 mm and a nominal size of 3 mm, it offers precise handling for various tasks.
3Made from high-quality materials like nickel-plated brass and steel, ensuring durability and long-lasting performance.
4Suitable for use with atmospheric air and compatible with food handling, making it versatile for multiple industrial applications.
5The compact design with a suction cup diameter of 20 mm and volume of 0.84 cm³, allows for precise placement in tight spaces.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Min. workpiece radius	30mm	Nominal width	3mm
Suction cup diameter	20mm	Suction cup volume	0.84cm3
Connection position	Top	Mounting position	Any
Symbol	00991485	Classification of suction cup holder	Size 4
Suction cup shape	Round, extra-deep	Operating pressure	-13.775psi 0psi
Nominal operating pressure	-10.15psi	Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-A1-L
For use in the food industry	See supplementary material information	Ambient temperature	-10°C 70°C
Holding force at nominal operating pressure	17N	Lateral force at nominal operating pressure	14N
Product weight	6.4g	Type of mounting	Via vacuum connection
Vacuum connection	M6	Color	Black
Shore hardness	60 +/- 5	Material of screwed plug	Brass, nickel-plated Steel, galvanized and chrome-plated
Note on materials	RoHS-compliant	Suction cup material	NBR
Manufacturer ID	189338

Specifications may be subject to change without notice
