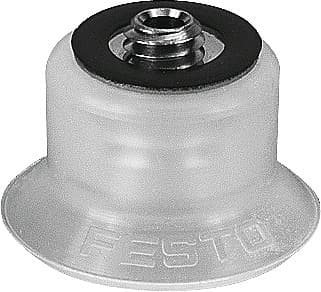

Product Model
ess-20-es
Selling Points
- 120mm diameter, round, extra-deep vacuum suction cup.
- 2Standard silicone material for durability and resistance.
- 3Threaded connection M6 for easy mounting.
- 4Operating pressure range: 0 to 0.95 bar.
- 5Low corrosion stress classification (CRC 1) and food-safe options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 30mm | Nominal width | 3mm |
Suction cup diameter | 20mm | Suction cup volume | 0.84cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 4 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
Holding force at nominal operating pressure | 17N | Lateral force at nominal operating pressure | 13N |
Product weight | 6.4g | Type of mounting | Via vacuum connection |
Vacuum connection | M6 | Color | Transparent |
Shore hardness | 50 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 189340 |
Specifications may be subject to change without notice
