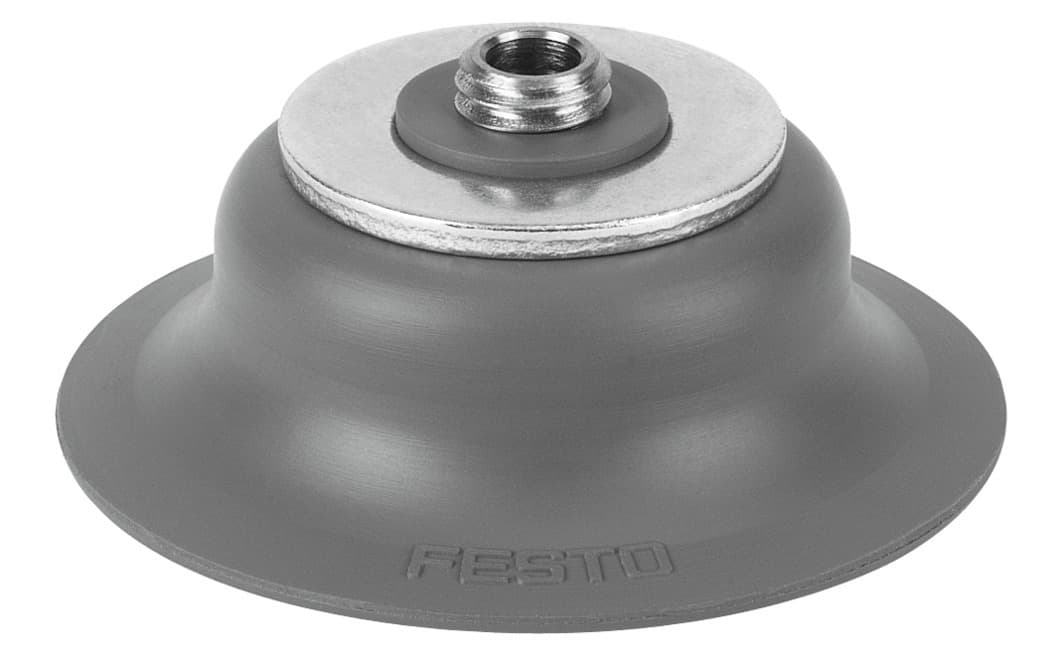

Festo ESS-20-SF Suction Cup - High-Performance Vacuum Solution

Selling Points

1High Holding Force: The Festo ESS-20-SF suction cup offers a holding force of 16.30 N at nominal operating pressure, ensuring reliable grip.
2Versatile Installation: This suction cup can be installed in any position, making it suitable for diverse applications and environments.
3Corrosion Resistant: Made from corrosion-resistant materials, the ESS-20-SF is designed to withstand harsh conditions.
4Wide Temperature Range: Operates effectively from -10°C to 200°C, accommodating various ambient temperatures.
5Compact Design: With a suction diameter of 20mm and a nominal width of 3mm, it is compact yet powerful.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Min. workpiece radius	60mm	Nominal width	3mm
Suction cup diameter	20mm	Suction cup volume	0.318cm3
Connection position	Top	Mounting position	Any
Symbol	00991485	Classification of suction cup holder	Size 4
Suction cup shape	Round, flat	Operating pressure	-13.775psi 0psi
Nominal operating pressure	-10.15psi	Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364-A1-L
For use in the food industry	See supplementary material information	Ambient temperature	-10°C 200°C
Holding force at nominal operating pressure	16.3N	Lateral force at nominal operating pressure	15.5N
Product weight	6.4g	Type of mounting	Via vacuum connection
Vacuum connection	M6	Color	Gray
Shore hardness	60 +/- 5	Material of screwed plug	Brass, nickel-plated Steel, galvanized and chrome-plated
Note on materials	RoHS-compliant	Suction cup material	FPM
Manufacturer ID	189297

Specifications may be subject to change without notice
