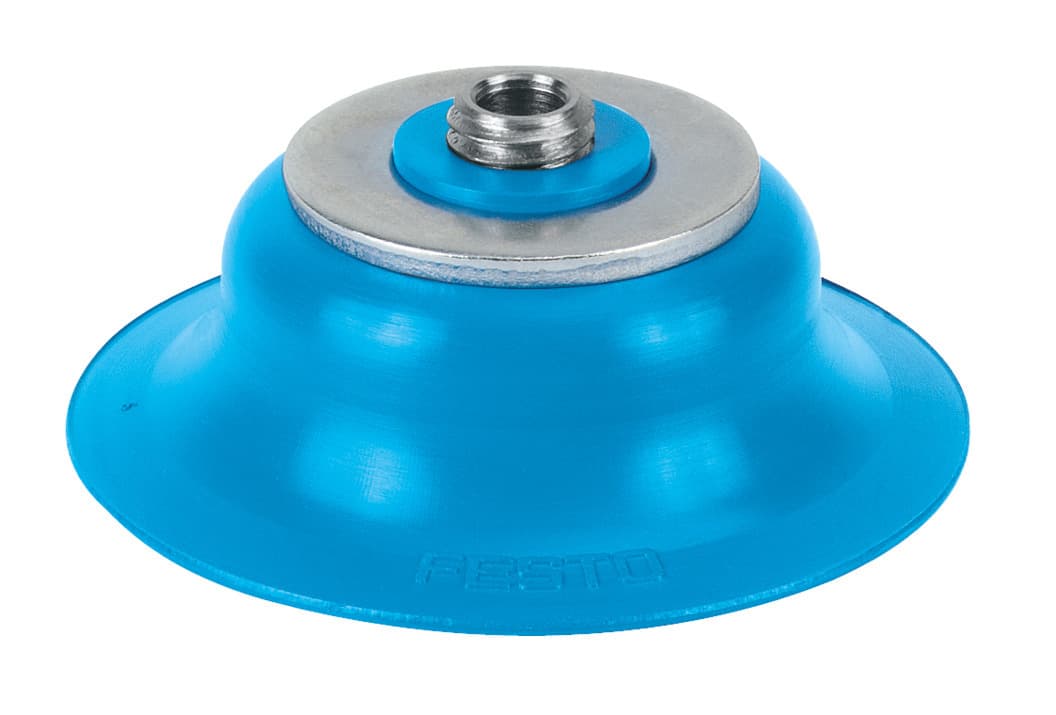

Product Model
ess-20-su
Selling Points
- 1Made from high-quality polyurethane (PUR) and nickel-plated brass, ensuring long-lasting performance.
- 2Compatible with internal thread, external thread, and push-in connectors for easy installation.
- 3Operates effectively in ambient temperatures from -20°C to +60°C.
- 4Compliant with CRC Class 1 for low-corrosion stress, suitable for various environments.
- 5Provides a holding force of 16.3N at nominal operating pressure, ensuring secure grip on workpieces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 60mm | Nominal width | 3mm |
Suction cup diameter | 20mm | Suction cup volume | 0.318cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 4 |
Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
Holding force at nominal operating pressure | 16.3N | Lateral force at nominal operating pressure | 23N |
Product weight | 6.4g | Type of mounting | Via vacuum connection |
Vacuum connection | M6 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 189295 |
Specifications may be subject to change without notice
