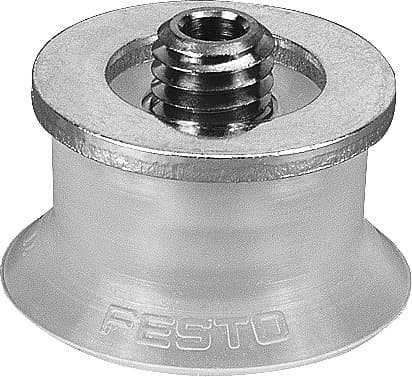

Festo 30mm Silicon Suction Cup ESS-30-ES

Selling Points

1High Holding Force: The Festo 30mm Silicon Suction Cup ESS-30-ES offers a robust holding force of 37.2N, ensuring secure grip in various vacuum applications.
2Durable Silicon Material: Constructed from high-quality silicon, this suction cup provides excellent durability and resistance to wear and tear.
3Compact Design: With a pad diameter of 30mm, the ESS-30-ES is designed for compact spaces, making it ideal for precision engineering and automation.
4Easy Mounting: The suction cup features a simple vacuum connection via M6, making it easy to integrate into your system.
5Versatile Use: Suitable for a wide range of applications including robotics, automation, and precision engineering, the Festo ESS-30-ES is a versatile tool for any industry.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Min. workpiece radius	50mm	Nominal width	3mm
Suction cup diameter	30mm	Suction cup volume	2.12cm3
Connection position	Top	Mounting position	Any
Symbol	00991485	Classification of suction cup holder	Size 4
Suction cup shape	Round, extra-deep	Operating pressure	-13.775psi 0psi
Nominal operating pressure	-10.15psi	Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	1 - Low corrosion stress	LABS (PWIS) conformity	VDMA24364 zone III
For use in the food industry	See supplementary material information	Ambient temperature	-30°C 180°C
Holding force at nominal operating pressure	37.2N	Lateral force at nominal operating pressure	21.5N
Product weight	9.2g	Type of mounting	Via vacuum connection
Vacuum connection	M6	Color	Transparent
Shore hardness	50 +/- 5	Material of screwed plug	Brass, nickel-plated Steel, galvanized and chrome-plated
Note on materials	RoHS-compliant	Suction cup material	VMQ (silicone)
Manufacturer ID	189344

Specifications may be subject to change without notice
