Product Model

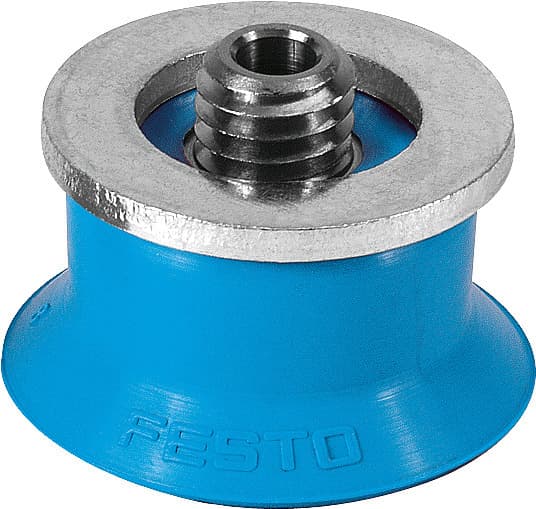

ess-30-eu
Selling Points
- 1Precision Mounting: The ESS-30-EU offers precise vacuum mounting with a round, extra deep suction cup design.
- 2Low Corrosion Resistance: Designed with low corrosion resistance (CRC 1) for reliable performance in various environments.
- 3Food-Safe Operation: Suitable for use with food, ensuring compliance with food safety standards.
- 4Operational Range: Compatible with atmospheric air based on ISO 8573-1:2010, operating pressure from -95 kPa to 0 kPa.
- 5Compact Design: Weighs only 9.2 grams, making it lightweight and easy to handle.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 50mm | Nominal width | 3mm |
Suction cup diameter | 30mm | Suction cup volume | 2.12cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 4 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
Holding force at nominal operating pressure | 37.2N | Lateral force at nominal operating pressure | 41.5N |
Product weight | 9.2g | Type of mounting | Via vacuum connection |
Vacuum connection | M6 | Color | Blue |
Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 189343 |
Specifications may be subject to change without notice
