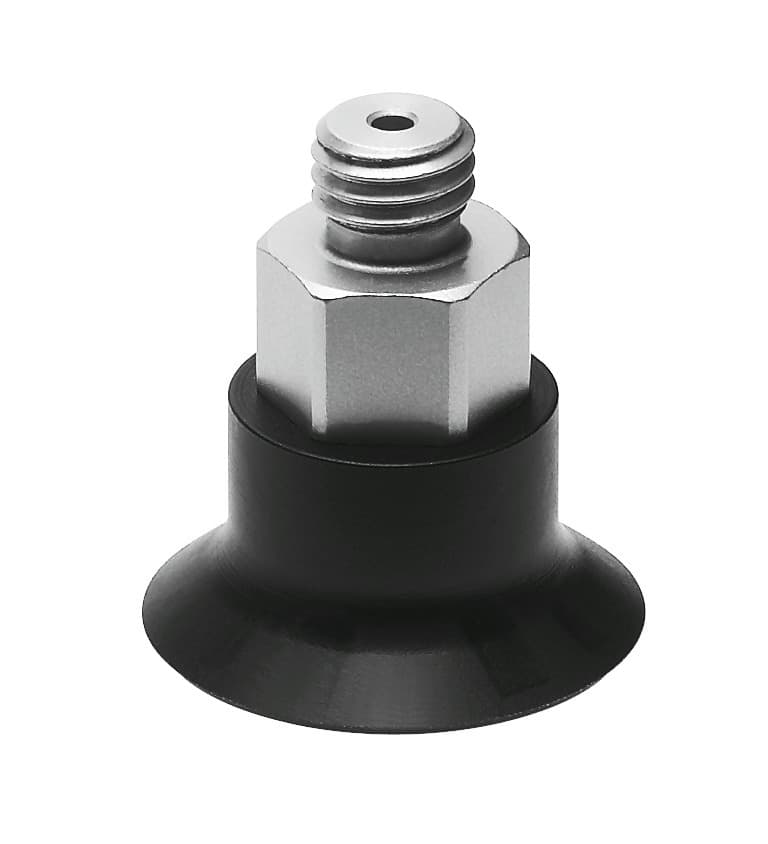

Festo ESS-30-GT-M6 Suction Cup: High-Quality Vacuum Solution

Selling Points

1The Festo ESS-30-GT-M6 suction cup features a 30mm diameter and 2.4 cm³ volume, ensuring efficient vacuum handling in various industrial applications.
2With a nominal operating pressure of -0.7 bar and a holding force of 36N at nominal operating pressure, this suction cup provides reliable and precise handling.
3The ESS-30-GT-M6 is designed with a height compensator for suction-cup holders, allowing for flexible installation and optimal performance in different workpiece radii.
4Made from Vulkollan material, this suction cup offers excellent corrosion resistance and durability, conforming to RoHS standards and suitable for use in a wide range of ambient temperatures (-10 °C to 80 °C).
5The Festo ESS-30-GT-M6 is easily interchangeable and can be mounted via a vacuum port with an M6 connection, making it a versatile and convenient solution for various industrial needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup holder height compensator	3.5mm	Min. workpiece radius	26mm
Nominal width	2.5mm	Suction cup diameter	30mm
Suction cup volume	2.4cm3	Mounting position	Any
Symbol	00991485	Classification of suction cup holder	Size 4
Suction cup shape	Round, deep	Operating pressure	-0.95bar 0bar
Nominal operating pressure	-0.7bar	Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-A1-L
Ambient temperature	-10°C 80°C	Holding force at nominal operating pressure	36N
Lateral force at nominal operating pressure	13N	Product weight	12g
Type of mounting	Via vacuum connection	Vacuum connection	M6
Color	Reddish brown	Shore hardness	72 +/- 5
Material of screwed plug	Wrought aluminum alloy	Note on materials	RoHS-compliant
Suction cup material	Vulkollan?	Manufacturer ID	525968

Specifications may be subject to change without notice
