Product Model
ess-40-bt-g1/4
Selling Points

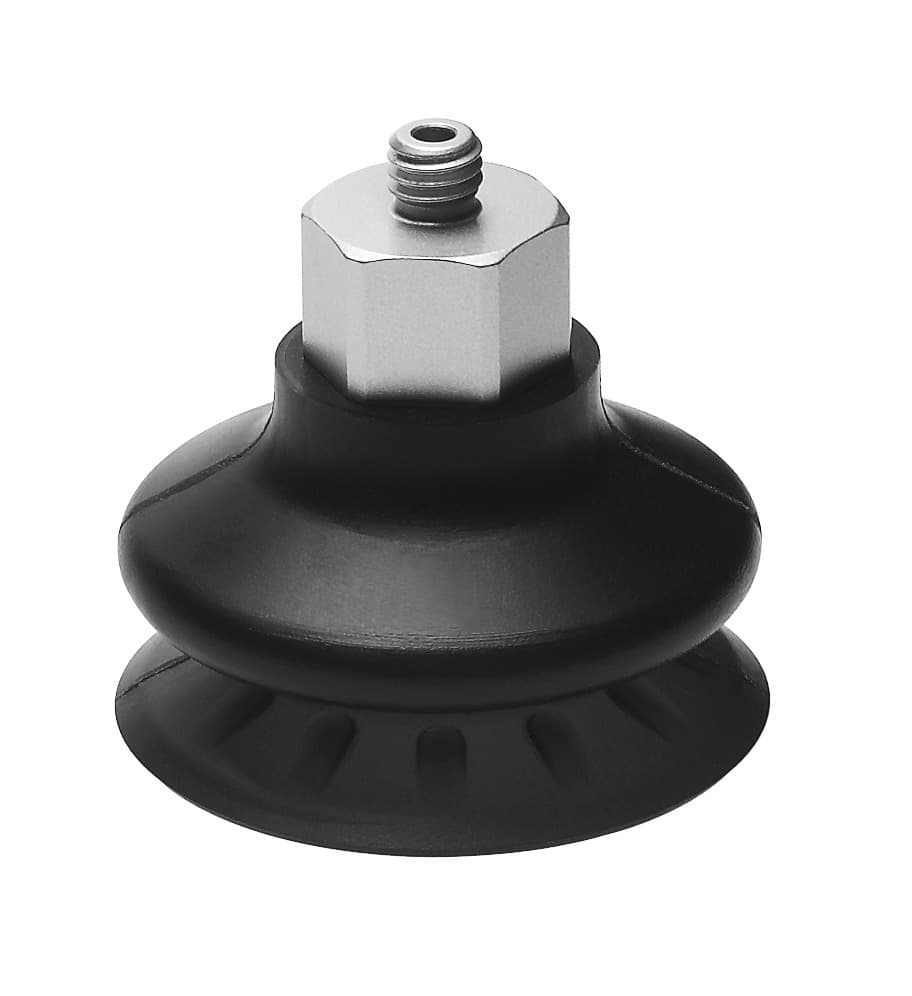

- 1The Festo ESS-40-BT-G1/4 vacuum suction cup boasts a round bellows design with 1.5 convolutions, ensuring excellent flexibility and adaptability to different workpieces.
- 2With a height compensator of 9 mm, this suction cup can handle varying workpiece heights, providing consistent performance and reliability.
- 3The ESS-40-BT-G1/4 features a nominal suction cup diameter of 40 mm and a nominal width of 2.5 mm, making it suitable for a wide range of applications.
- 4This high-quality suction cup operates within a pressure range of -0.95 bar to 0 bar, with a nominal operating pressure of -0.7 bar, ensuring optimal performance under various conditions.
- 5The Festo ESS-40-BT-G1/4 offers a holding force of 59 N at nominal operating pressure, along with a lateral force of 22 N, providing strong and stable grip on workpieces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 9mm | Min. workpiece radius | 35mm |
Nominal width | 2.5mm | Suction cup diameter | 40mm |
Suction cup volume | 9.8cm3 | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
Holding force at nominal operating pressure | 59N | Lateral force at nominal operating pressure | 22N |
Product weight | 20.5g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Reddish brown |
Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 525992 |
Specifications may be subject to change without notice
