Product Model
ess-40-bt-g1/4-i
Selling Points

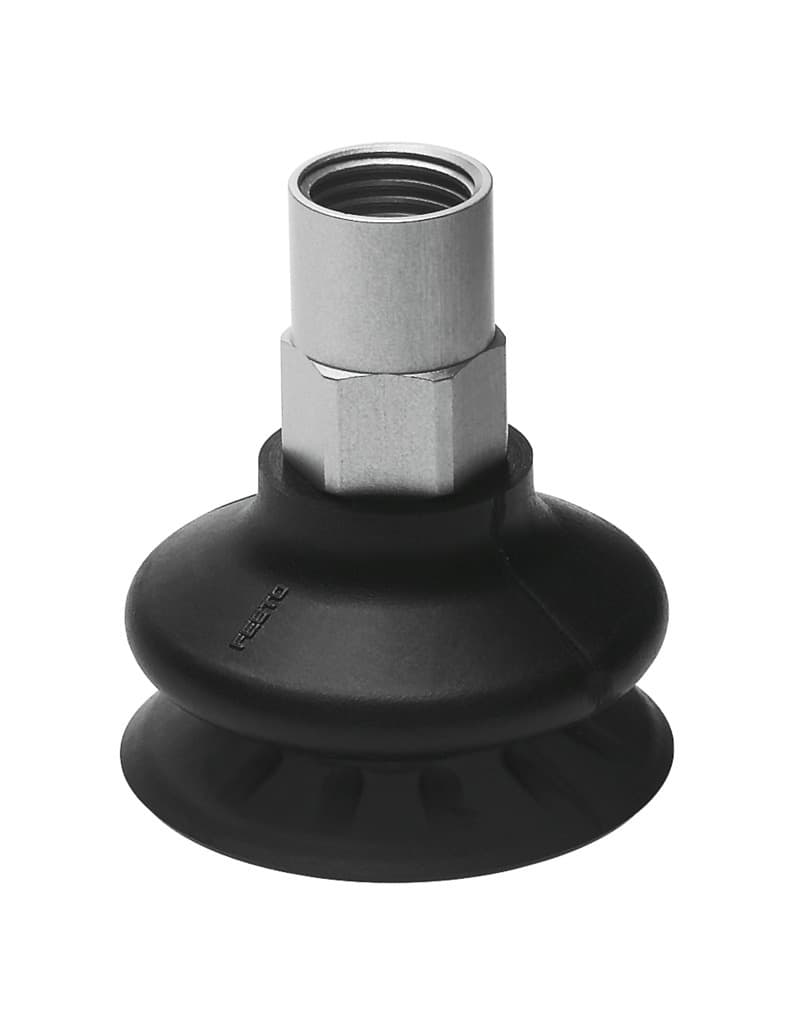

- 1The Festo ESS-40-BT-G1/4-I vacuum suction cup offers a robust holding force of 59 N, ensuring reliable grip on workpieces.
- 2This suction cup can be mounted in any position, providing flexibility for different application setups.
- 3With a moderate corrosion resistance class (CRC) 2, the ESS-40-BT-G1/4-I is suitable for environments with moderate corrosion stress.
- 4Operating pressure ranges from -0.95 bar to 0 bar, making it adaptable to various vacuum conditions.
- 5Constructed from Vulkollan®, a durable material known for its high elasticity and resistance to wear, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 9mm | Min. workpiece radius | 35mm |
Nominal width | 2.5mm | Suction cup diameter | 40mm |
Suction cup volume | 9.8cm3 | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
Holding force at nominal operating pressure | 59N | Lateral force at nominal operating pressure | 22N |
Product weight | 19g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Reddish brown |
Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 525991 |
Specifications may be subject to change without notice
