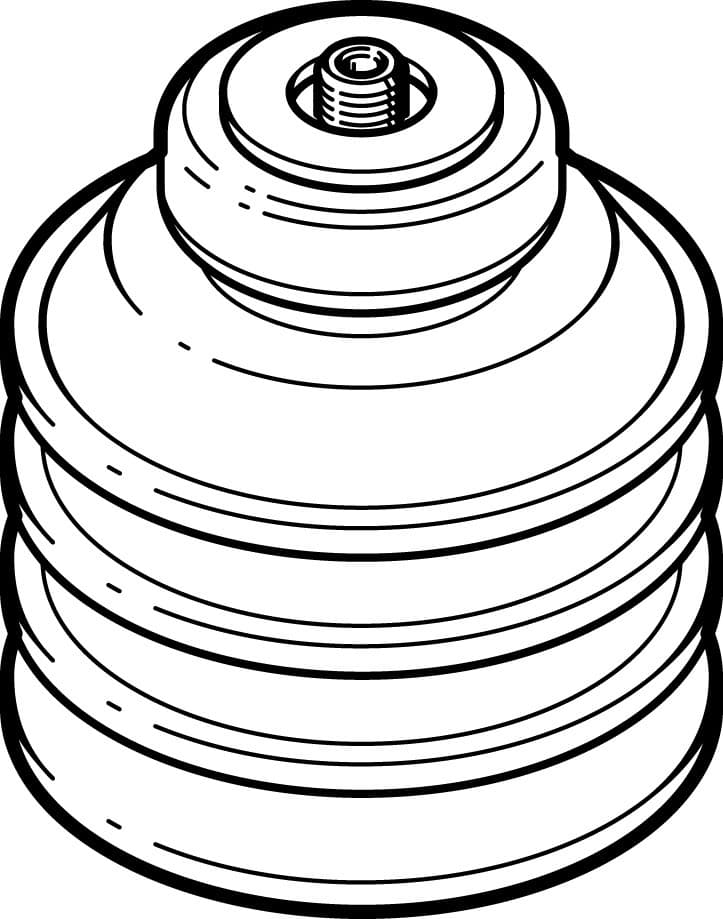

Product Model
ess-40-cs
Selling Points
- 1High-performance vacuum suction cup with a 40mm diameter and 19.72 cm³ volume.
- 2Height compensation of 12.8 mm for precise workpiece handling.
- 3Low corrosion resistance class (CRC) 1 for use in various industries.
- 4Operating pressure range from -95 kPa to 0 kPa, suitable for atmospheric air.
- 5Compatible with various mounting options via vacuum connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 12.8mm | Min. workpiece radius | 100mm |
Nominal width | 3mm | Suction cup diameter | 40mm |
Suction cup volume | 19.72cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 42.4N |
Lateral force at nominal operating pressure | 13N | Product weight | 21.9g |
Type of mounting | Via vacuum connection | Vacuum connection | M6 |
Color | Transparent | Shore hardness | 50 +/- 5 |
Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 189405 |
Specifications may be subject to change without notice
