Product Model

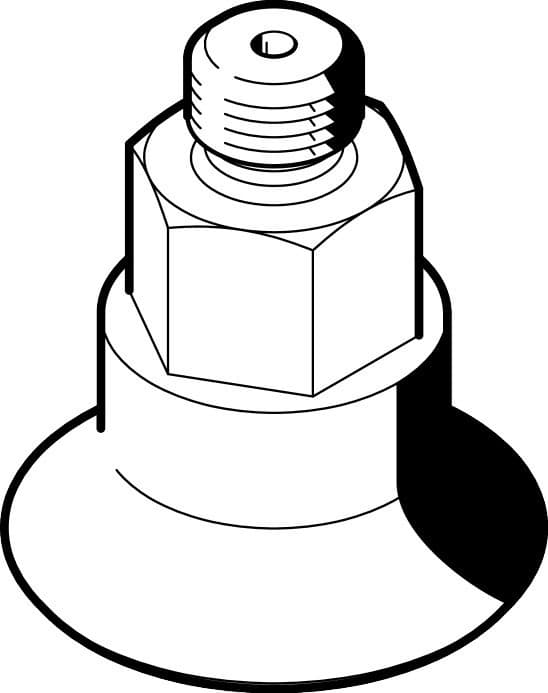

ess-40-gt-m6
Selling Points
- 1High Holding Force: The ESS-40-GT-M6 suction cup offers a holding force of 64 N at nominal operating pressure, ensuring secure and reliable vacuum operations.
- 2Wide Temperature Range: This suction cup operates effectively within a temperature range of -10°C to 80°C, making it suitable for various industrial environments.
- 3Corrosion Resistance: With a corrosion resistance class of CRC 2, the ESS-40-GT-M6 is designed to withstand moderate corrosion stress, ensuring durability in harsh conditions.
- 4Compact Design: Featuring a height of 5.5 mm and a suction cup diameter of 40 mm, this suction cup is compact and easy to integrate into your vacuum systems.
- 5Versatile Mounting Options: The ESS-40-GT-M6 can be mounted via the vacuum port, offering flexibility in its application and installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 5.5mm | Min. workpiece radius | 35mm |
Nominal width | 2.5mm | Suction cup diameter | 40mm |
Suction cup volume | 5.4cm3 | Mounting position | Any |
Symbol | 00991485 | Classification of suction cup holder | Size 4 |
Suction cup shape | Round, deep | Operating pressure | -0.95bar 0bar |
Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 64N |
Lateral force at nominal operating pressure | 20N | Product weight | 14g |
Type of mounting | Via vacuum connection | Vacuum connection | M6 |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
Suction cup material | Vulkollan? | Manufacturer ID | 525972 |
Specifications may be subject to change without notice
