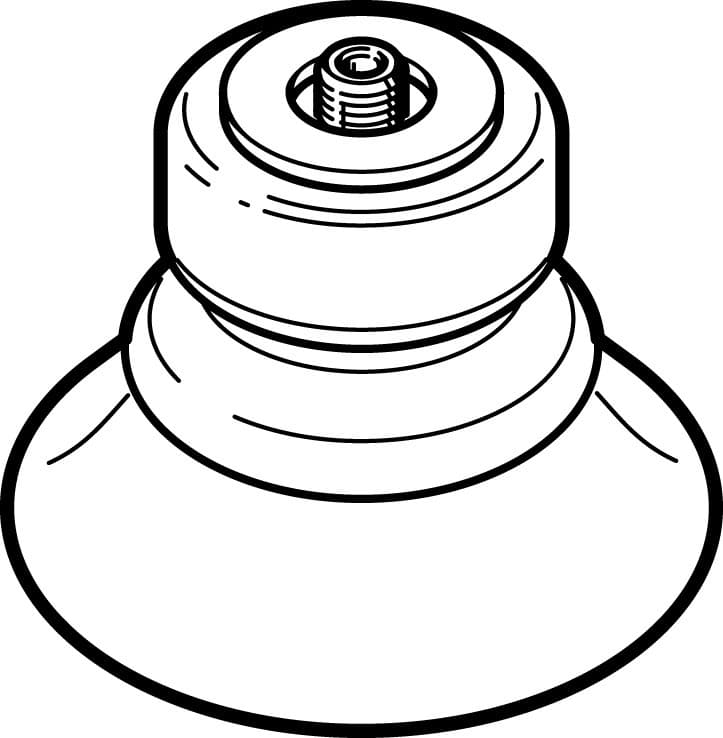

Festo ESS-50-BN Vacuum Suction Cup - High-Performance Solution

Selling Points

1High Holding Force: The ESS-50-BN suction cup offers a nominal holding force of 72.6 N, ensuring reliable operation in various environments.
2Corrosion-Resistant Design: Made from NBR material, this suction cup is CRC Class 1 compliant, providing low corrosion stress and ensuring durability.
3Versatile Mounting Options: The suction cup can be mounted via vacuum port with an M6 connection, offering flexibility in installation.
4Wide Operating Range: Suitable for ambient temperatures between -10°C and 70°C, making it versatile for different working conditions.
5Compact Design: With a diameter of 50 mm and a height compensator of 11 mm, it fits perfectly into tight spaces while maintaining performance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup height compensation	11mm	Min. workpiece radius	150mm
Nominal width	3mm	Suction cup diameter	50mm
Suction cup volume	14.23cm3	Connection position	Top
Mounting position	Any	Symbol	00991485
Classification of suction cup holder	Size 4	Suction cup shape	Round bellows, 1.5 convolutions
Operating pressure	-13.775psi 0psi	Nominal operating pressure	-10.15psi
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-A1-L	For use in the food industry	See supplementary material information
Ambient temperature	-10°C 70°C	Holding force at nominal operating pressure	72.6N
Lateral force at nominal operating pressure	55.5N	Product weight	24.7g
Type of mounting	Via vacuum connection	Vacuum connection	M6
Color	Black	Shore hardness	50 +/- 5
Material of screwed plug	Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated	Note on materials	RoHS-compliant
Suction cup material	NBR	Manufacturer ID	189390

Specifications may be subject to change without notice
