Product Model
ess-50-bs
Selling Points

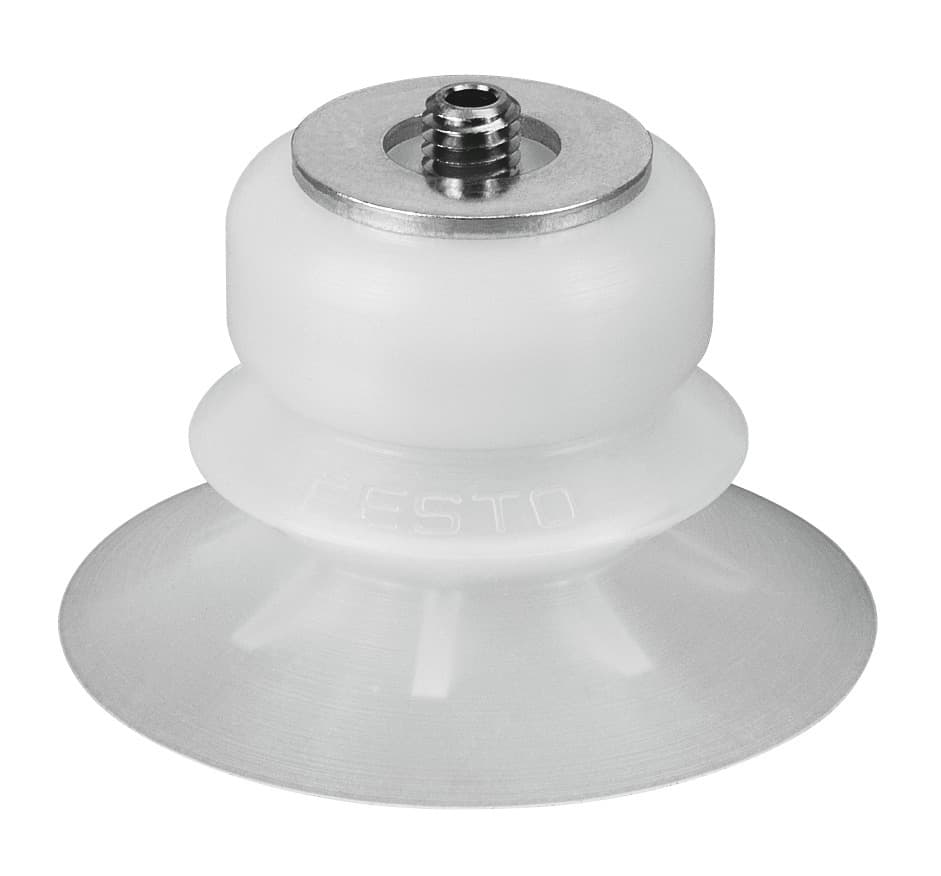

- 1The Festo ESS-50-BS suction cup is easily interchangeable, ensuring quick and efficient use in various applications.
- 2With a nominal size of 3 mm and a suction cup diameter of 50 mm, this suction cup provides strong vacuum power.
- 3The suction cup can be assembled in any position, offering flexibility in installation and use.
- 4Classified as CRC 1 – Low corrosion stress, this suction cup is designed to withstand various environments.
- 5Made from high-quality silicone VMQ material, the Festo ESS-50-BS suction cup ensures durability and long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 11mm | Min. workpiece radius | 150mm |
Nominal width | 3mm | Suction cup diameter | 50mm |
Suction cup volume | 14.23cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 72.6N |
Lateral force at nominal operating pressure | 38N | Product weight | 24.7g |
Type of mounting | Via vacuum connection | Vacuum connection | M6 |
Color | Transparent | Shore hardness | 50 +/- 5 |
Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
Suction cup material | VMQ (silicone) | Manufacturer ID | 189392 |
Specifications may be subject to change without notice
