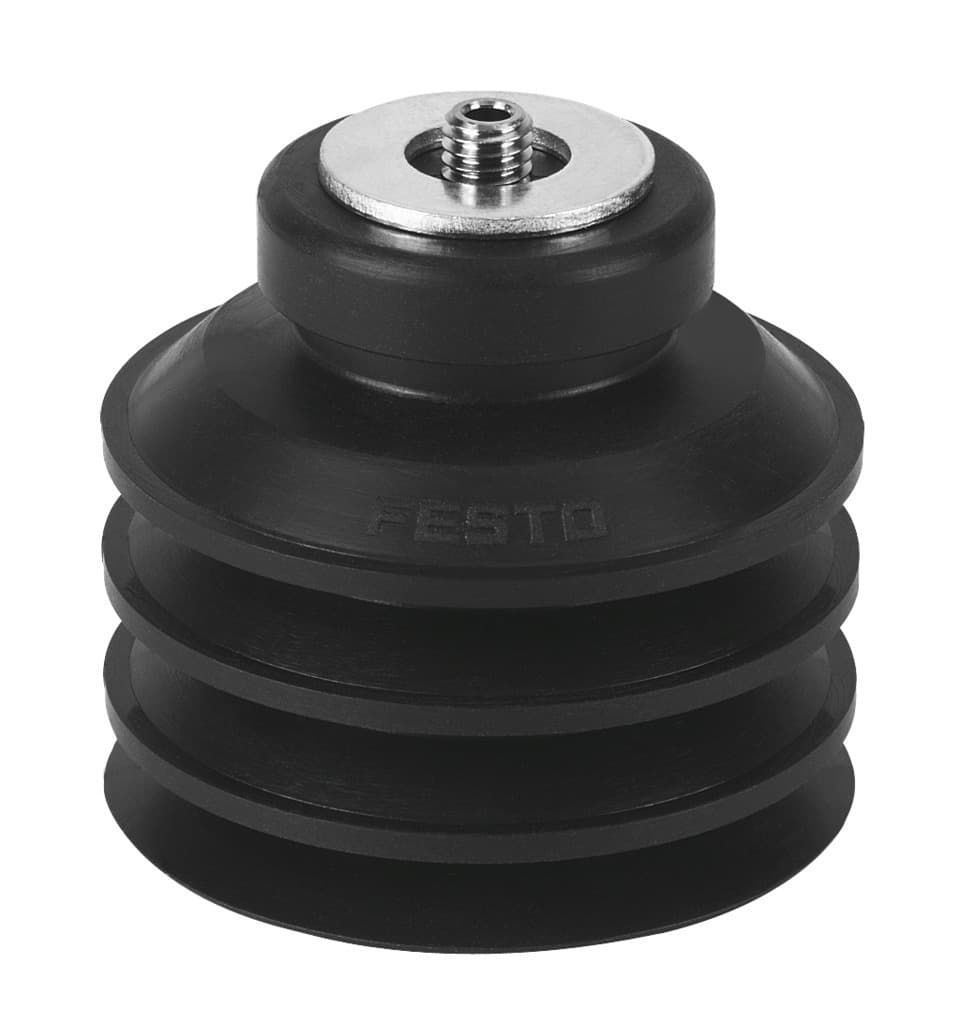

Festo ESS-50-CN Vacuum Suction Cup - High-Performance Suction

Selling Points

1High-Performance Suction: The Festo ESS-50-CN vacuum suction cup offers a 63.4N holding force at nominal operating pressure.
2Versatile Design: Features a round, bellows design with 3.5 convolutions for versatile use in various industrial applications.
3Durable Materials: Constructed with standard Nitrile rubber material and nickel-plated wrought aluminum alloy for durability.
4Easy Installation: Equipped with a threaded connection M6 for easy mounting and installation.
5Compliant with Standards: Meets VDMA24364-A1-L lABS (PWIS) conformity and ISO 8573-1:2010 operating medium standards.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup height compensation	17.5mm	Min. workpiece radius	180mm
Nominal width	3mm	Suction cup diameter	50mm
Suction cup volume	38.92cm3	Connection position	Top
Mounting position	Any	Symbol	00991485
Classification of suction cup holder	Size 4	Suction cup shape	Round bellows, 3.5 convolutions
Operating pressure	-13.775psi 0psi	Nominal operating pressure	-10.15psi
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-A1-L	For use in the food industry	See supplementary material information
Ambient temperature	-10°C 70°C	Holding force at nominal operating pressure	63.4N
Lateral force at nominal operating pressure	49N	Product weight	32.1g
Type of mounting	Via vacuum connection	Vacuum connection	M6
Color	Black	Shore hardness	50 +/- 5
Material of screwed plug	Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated	Note on materials	RoHS-compliant
Suction cup material	NBR	Manufacturer ID	189406

Specifications may be subject to change without notice
