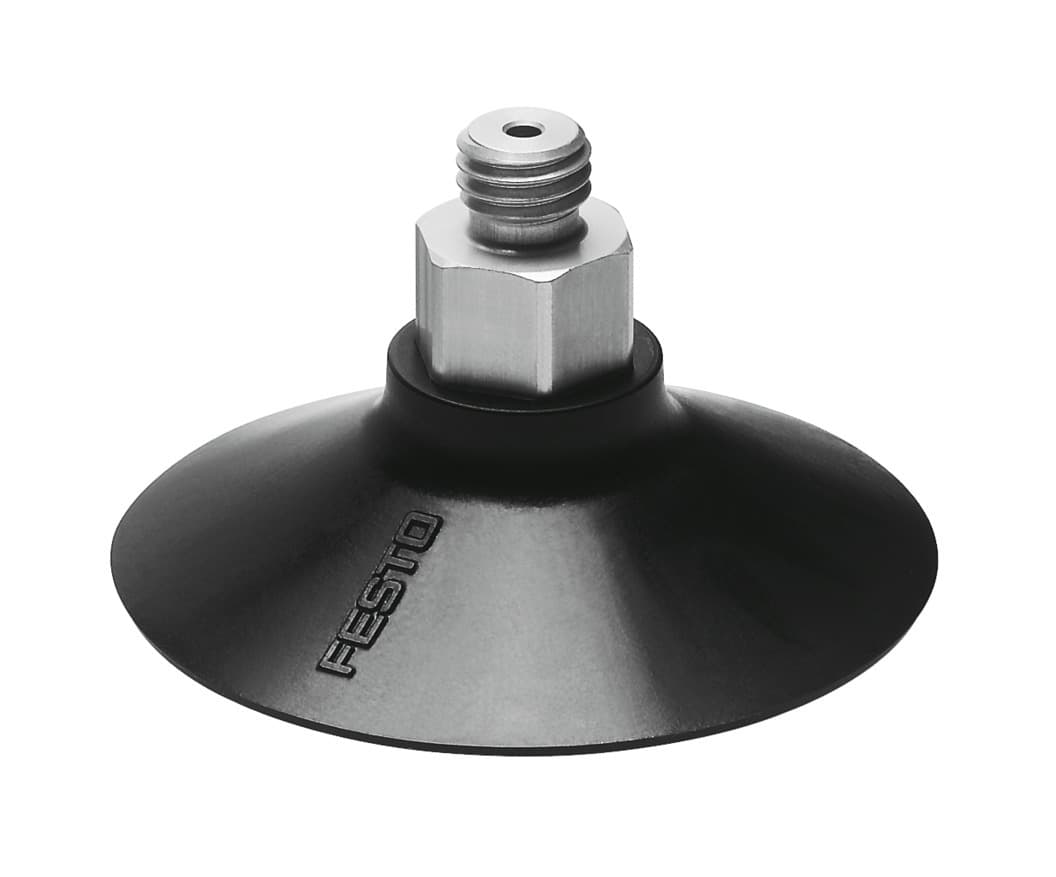

Festo ESS-60-GT-G1/4 Vacuum Suction Cup - High-Performance Solution

Selling Points

1The Festo ESS-60-GT-G1/4 vacuum suction cup offers a 60mm diameter and a round, deep shape, ensuring optimal grip and versatility in various applications.
2With a nominal operating pressure of -0.7 bar and an operating pressure range of -0.95 bar to 0 bar, this suction cup is designed to handle a wide range of vacuum conditions.
3The ESS-60-GT-G1/4 features a height compensator of 6mm, allowing for precise positioning and ensuring consistent performance even with varying workpiece heights.
4This suction cup is made from Vulkollan material, known for its high-performance elastomer properties, providing excellent durability and resistance to wear.
5With a holding force of 134N at nominal operating pressure and a lateral force of 37N, the Festo ESS-60-GT-G1/4 ensures reliable and secure gripping of workpieces, making it ideal for various industrial applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup holder height compensator	6mm	Min. workpiece radius	75mm
Nominal width	2.5mm	Suction cup diameter	60mm
Suction cup volume	11.3cm3	Mounting position	Any
Symbol	00991485	Suction cup shape	Round, deep
Operating pressure	-0.95bar 0bar	Nominal operating pressure	-0.7bar
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-A1-L	Ambient temperature	-10°C 80°C
Holding force at nominal operating pressure	134N	Lateral force at nominal operating pressure	37N
Product weight	21g	Type of mounting	Via vacuum connection
Vacuum connection	G1/4	Color	Reddish brown
Shore hardness	72 +/- 5	Material of screwed plug	Wrought aluminum alloy
Note on materials	RoHS-compliant	Suction cup material	Vulkollan?
Manufacturer ID	525982

Specifications may be subject to change without notice
