Product Model
ess-80-bt-g1/4
Selling Points

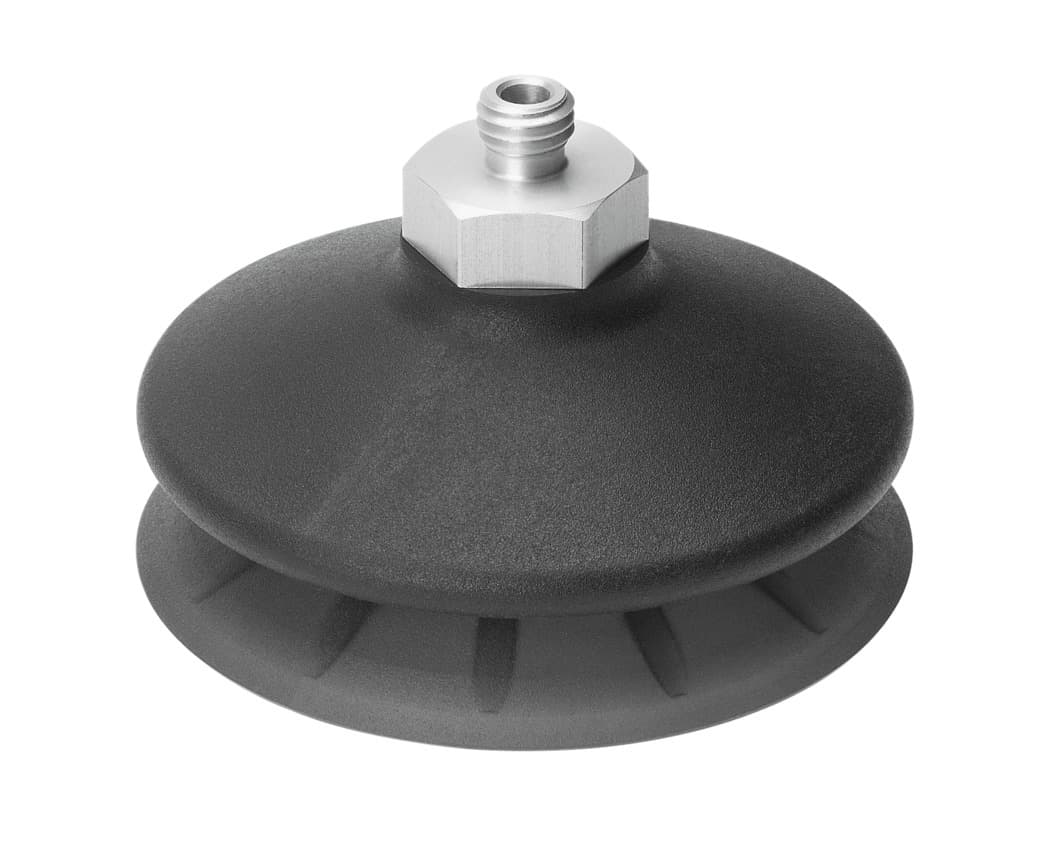

- 1The Festo ESS-80-BT-G1/4 suction cup is made from durable polyurethane and wrought aluminum alloy, ensuring long-lasting performance and resistance to corrosion.
- 2This suction cup features a round, bellows shape with 1.5 convolutions, allowing for a wide range of workpiece radii from 10 to 680 mm.
- 3With an operating pressure range of -0.95 to 0 bar, the ESS-80-BT-G1/4 provides reliable suction force, making it suitable for various industrial applications.
- 4The suction cup comes with a support plate and mounting options, including internal thread, external thread, and push-in connector, making installation straightforward.
- 5The Festo ESS-80-BT-G1/4 is RoHS compliant and suitable for ambient temperatures ranging from -10°C to +80°C, ensuring safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 10.5mm | Min. workpiece radius | 100mm |
Nominal width | 2.5mm | Suction cup diameter | 80mm |
Suction cup volume | 59.1cm3 | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
Holding force at nominal operating pressure | 237N | Lateral force at nominal operating pressure | 102N |
Product weight | 85.5g | Type of mounting | Via vacuum connection |
Vacuum connection | G1/4 | Color | Reddish brown |
Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 525999 |
Specifications may be subject to change without notice
