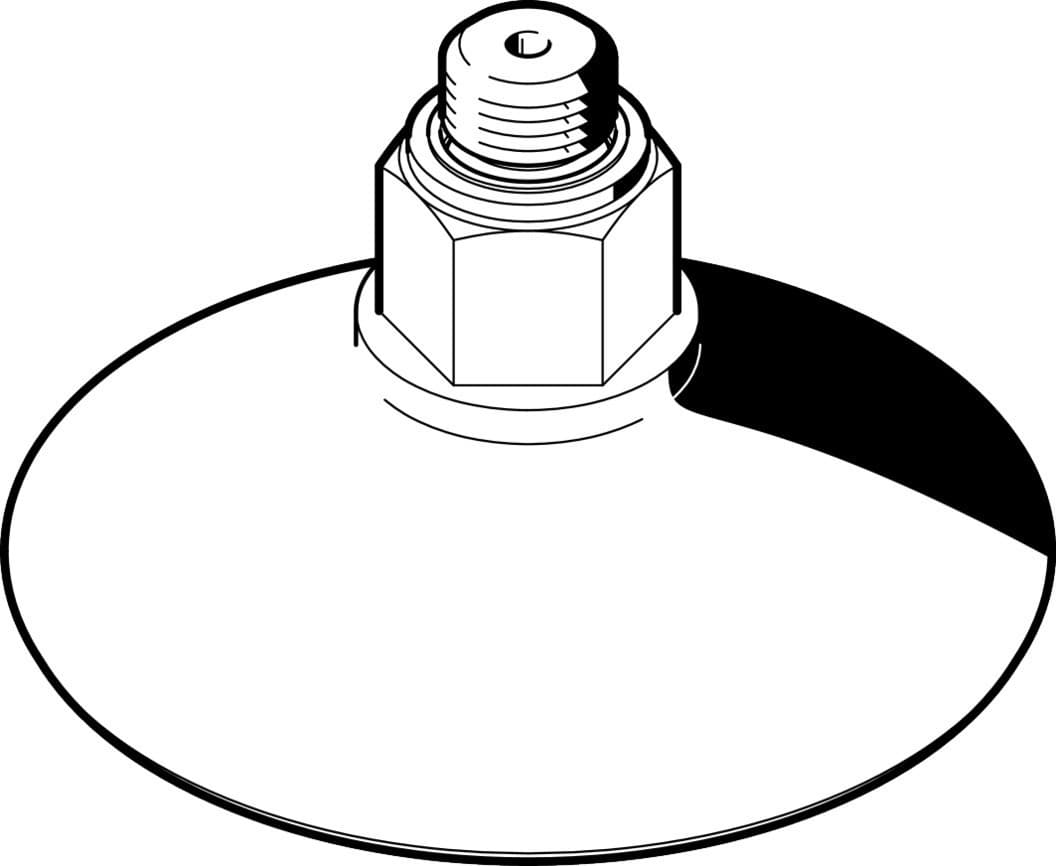

Festo 80mm Suction Cup ESS-80-GT-M10 - High-Quality Vacuum Solution

Selling Points

1The Festo 80mm Suction Cup ESS-80-GT-M10 features a round, bell-shaped design with a diameter of 80mm, ensuring a secure grip on various surfaces.
2With a holding force of 245N at nominal operating pressure, this suction cup provides robust and reliable performance in industrial applications.
3Made from Vulkollan, a high-quality material known for its durability and resistance to wear and tear, the ESS-80-GT-M10 is built to last.
4The suction cup is designed with a height compensator for suction-cup holders, ensuring optimal performance and stability across different workpiece radii.
5Available with a 2-year warranty, the Festo 80mm Suction Cup ESS-80-GT-M10 offers peace of mind and long-term reliability for your industrial needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Suction cup holder height compensator	7.5mm	Min. workpiece radius	100mm
Nominal width	5.5mm	Suction cup diameter	80mm
Suction cup volume	28.6cm3	Mounting position	Any
Structural design	Round, bell-shaped	Symbol	00991485
Classification of suction cup holder	Size 5	Suction cup shape	Round, deep
Operating pressure	-0.95bar 0bar	Nominal operating pressure	-0.7bar
Operating medium	Atmospheric air based on ISO 8573-1:2010 [7:-:-]	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-A1-L	Ambient temperature	-10°C 80°C
Breakaway force at 70% vacuum	245N	Holding force at nominal operating pressure	245N
Max. tightening torque for mounting thread	12Nm	Lateral force at nominal operating pressure	99N
Product weight	28g	Type of mounting	Via vacuum connection
Vacuum connection	M10	Color	Reddish brown
Shore hardness	72 +/- 5	Material of screwed plug	Wrought aluminum alloy
Note on materials	RoHS-compliant	Suction cup material	Vulkollan?
Manufacturer ID	525983

Specifications may be subject to change without notice
