Product Model
esv-100-ef
Selling Points

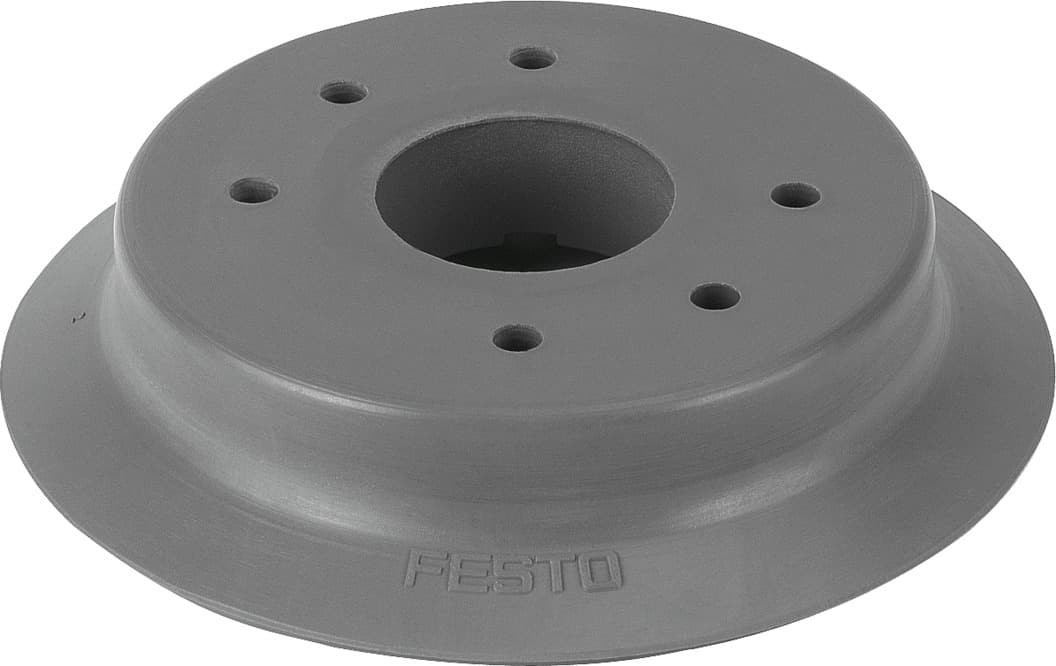

- 1The Festo ESV-100-EF suction cup features a round, extra-deep design with a 100mm diameter, ensuring robust and reliable vacuum performance in various applications.
- 2With a holding force of 440.8 N at nominal operating pressure, the ESV-100-EF provides exceptional grip and stability, making it suitable for heavy-duty tasks.
- 3Made from FPM (Fluoroplastic Material), the suction cup offers high chemical resistance and durability, ensuring long-lasting performance in demanding environments.
- 4The ESV-100-EF is designed with a top connection position, allowing for versatile mounting options and easy integration into existing systems.
- 5Ideal for applications requiring a minimum workpiece radius of 200mm, this suction cup is versatile and can be used in various industries such as manufacturing, logistics, and more.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 200mm | Suction cup diameter | 100mm |
Suction cup volume | 79.812cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 440.8N |
Product weight | 65g | Color | Gray |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | FPM | Manufacturer ID | 191050 |
Specifications may be subject to change without notice
