Product Model
esv-20-bs
Selling Points

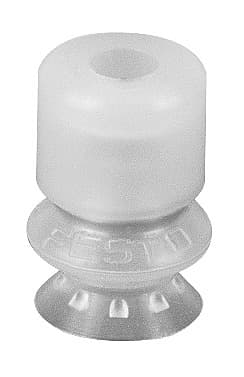

- 1The Festo ESV-20-BS vacuum suction cup offers 6 mm of suction cup height compensation, ensuring stable grip on workpieces of varying heights.
- 2With a suction cup diameter of 20 mm and a min. workpiece radius of 40 mm, this suction cup is versatile for a wide range of applications.
- 3The ESV-20-BS features a round bellows shape with 1.5 convolutions, providing effective vacuum sealing and durability.
- 4Operating within the range of -95 kPa to 0 kPa (or -0.95 bar to 0 bar), this suction cup is designed for use with atmospheric air based on ISO 8573-1:2010.
- 5The Festo ESV-20-BS is RoHS-compliant and made from VMQ (silicone) material, ensuring it meets stringent environmental and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 6mm | Min. workpiece radius | 40mm |
Suction cup diameter | 20mm | Suction cup volume | 1.6cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
Holding force at nominal operating pressure | 12.9N | Product weight | 1.9g |
Color | Transparent | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 191056 |
Specifications may be subject to change without notice
