Product Model
esv-20-bu
Selling Points

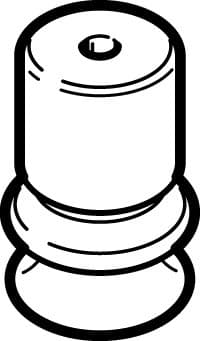

- 1The Festo ESV-20-BU vacuum suction cup features a 6 mm suction cup height compensator, ensuring stable and consistent performance in various workpiece configurations.
- 2With a minimum workpiece radius of 40 mm and a suction cup diameter of 20 mm, this suction cup is versatile and can be used in a wide range of applications.
- 3The ESV-20-BU is made from high-quality polyurethane (PUR) material, which is free of copper and PTFE, making it suitable for use in the food industry.
- 4This suction cup operates within a temperature range of -20°C to 60°C and is designed to withstand atmospheric air based on ISO 8573-1:2010, ensuring reliable performance in various environments.
- 5The Festo ESV-20-BU offers a holding force of 12.9 N at nominal operating pressure, providing strong and secure grip on workpieces, making it ideal for handling delicate or heavy items.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 6mm | Min. workpiece radius | 40mm |
Suction cup diameter | 20mm | Suction cup volume | 1.6cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
Holding force at nominal operating pressure | 12.9N | Product weight | 1.9g |
Color | Blue | Shore hardness | 60 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 191055 |
Specifications may be subject to change without notice
