Product Model
esv-20-cn
Selling Points

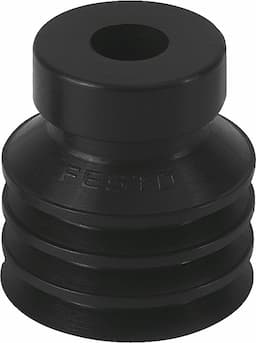

- 1The Festo ESV-20-CN is a 20mm bellows NBR suction cup, offering a reliable and durable solution for vacuum applications. Its nitrile rubber material ensures high corrosion resistance and flexibility.
- 2This suction cup features a round, bellows shape with 3.5 convolutions, providing a strong holding force of 8.2N at nominal operating pressure.
- 3The ESV-20-CN is designed for use in various industries, including food processing, where its corrosion resistance class 1 according to Festo standard 940 070 ensures safe operation.
- 4With a suction cup diameter of 20mm and a height compensator of 7mm, this suction cup is versatile and can handle workpieces with a minimum radius of 50mm.
- 5The Festo ESV-20-CN is available with a M6 threaded pneumatic port, making it easy to integrate into your vacuum system for precise and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 7mm | Min. workpiece radius | 50mm |
Suction cup diameter | 20mm | Suction cup volume | 2.75cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
Holding force at nominal operating pressure | 8.2N | Product weight | 2.1g |
Color | Black | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | NBR |
Manufacturer ID | 191071 |
Specifications may be subject to change without notice
