Product Model

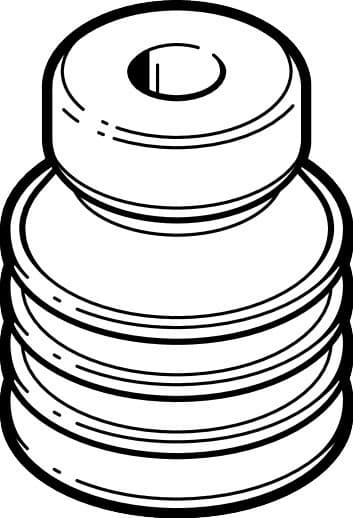

esv-30-cs
Selling Points
- 1The Festo ESV-30-CS vacuum suction cup is designed to operate in temperatures ranging from -30°C to 180°C, making it suitable for a wide range of applications.
- 2Made from VMQ (silicone) material, this suction cup is transparent, allowing for clear visibility and easy inspection.
- 3The suction cup can be mounted in any position, providing flexibility in installation and use.
- 4With a nominal operating pressure of 70 kPa and a holding force of 20.8 N, this suction cup ensures reliable and secure gripping.
- 5The suction cup is designed as a wearing part, making it easily replaceable when needed, extending the lifespan of your equipment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 10.5mm | Min. workpiece radius | 80mm |
Suction cup diameter | 30mm | Suction cup volume | 9.47cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
Holding force at nominal operating pressure | 20.8N | Product weight | 5.8g |
Color | Transparent | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 191074 |
Specifications may be subject to change without notice
