Product Model
esv-30-gt
Selling Points

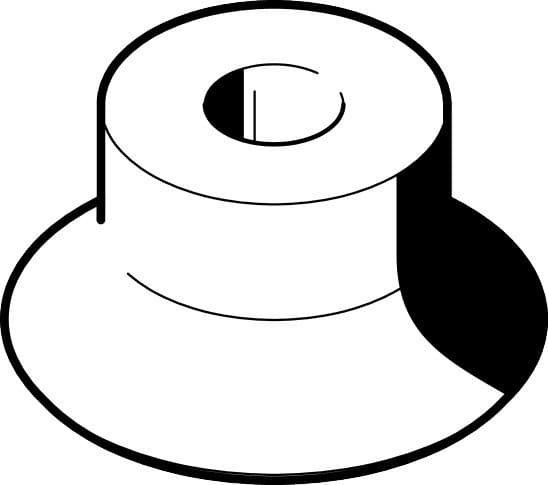

- 1The Festo ESV-30-GT suction cup features a round, deep shape with a diameter of 30 mm, ensuring a secure grip on workpieces.
- 2With a nominal operating pressure of -0.7 bar and a breakaway force of 36 N at 70% vacuum, this suction cup provides reliable holding force in various environments.
- 3The ESV-30-GT is made from Vulkollan, a high-quality material that is RoHS-compliant and resistant to corrosion, making it suitable for use in various industrial settings.
- 4This suction cup has a height compensator of 3.5 mm, allowing it to adapt to different workpiece radii, ensuring optimal performance in various applications.
- 5The Festo ESV-30-GT is designed for use with atmospheric air based on ISO 8573-1:2010, ensuring compatibility with standard pneumatic systems and operating temperatures ranging from -10 °C to 80 °C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup holder height compensator | 3.5mm | Min. workpiece radius | 26mm |
Suction cup diameter | 30mm | Suction cup volume | 2.4cm3 |
Mounting position | Any | Structural design | Round, bell-shaped |
Symbol | 00991485 | Suction cup shape | Round, deep |
Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-A1-L |
Ambient temperature | -10°C 80°C | Breakaway force at 70% vacuum | 36N |
Holding force at nominal operating pressure | 36N | Lateral force at nominal operating pressure | 13N |
Product weight | 4.2g | Type of mounting | Via vacuum connection |
Color | Reddish brown | Shore hardness | 72 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
Manufacturer ID | 526000 |
Specifications may be subject to change without notice
