Product Model
esv-40-bs
Selling Points

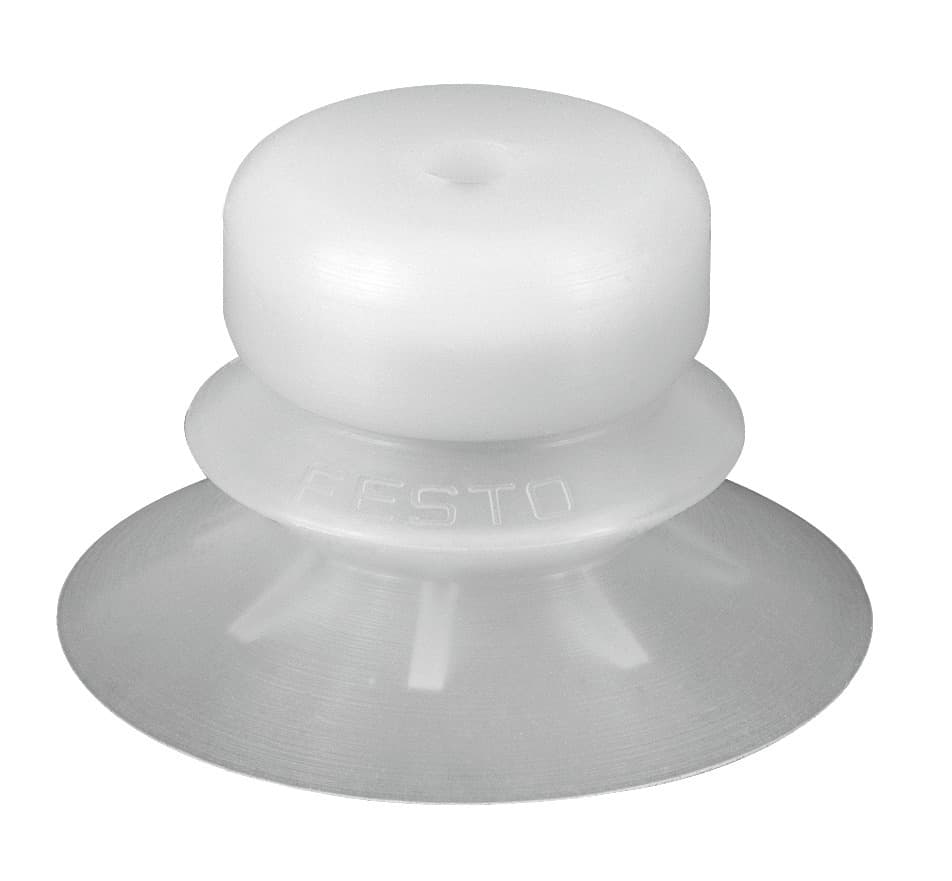

- 1The Festo ESV-40-BS vacuum suction cup offers a 40mm diameter and 11.699cm³ volume, ensuring efficient handling of workpieces in various applications.
- 2Equipped with a 9.5mm height compensator, this suction cup ensures stable and precise positioning of workpieces, even with varying heights.
- 3The ESV-40-BS is designed for top connection and optional mounting positions, providing flexibility in installation and use.
- 4Operating within a range of -95 kPa to 0 kPa, this suction cup is compatible with atmospheric air based on ISO 8573-1:2010, making it suitable for diverse environments.
- 5The Festo ESV-40-BS is RoHS-compliant and made from VMQ (silicone) material, ensuring durability and safety in applications such as food processing and automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 9.5mm | Min. workpiece radius | 90mm |
Suction cup diameter | 40mm | Suction cup volume | 11.699cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
Holding force at nominal operating pressure | 52.3N | Product weight | 9.8g |
Color | Transparent | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 191062 |
Specifications may be subject to change without notice
