Product Model

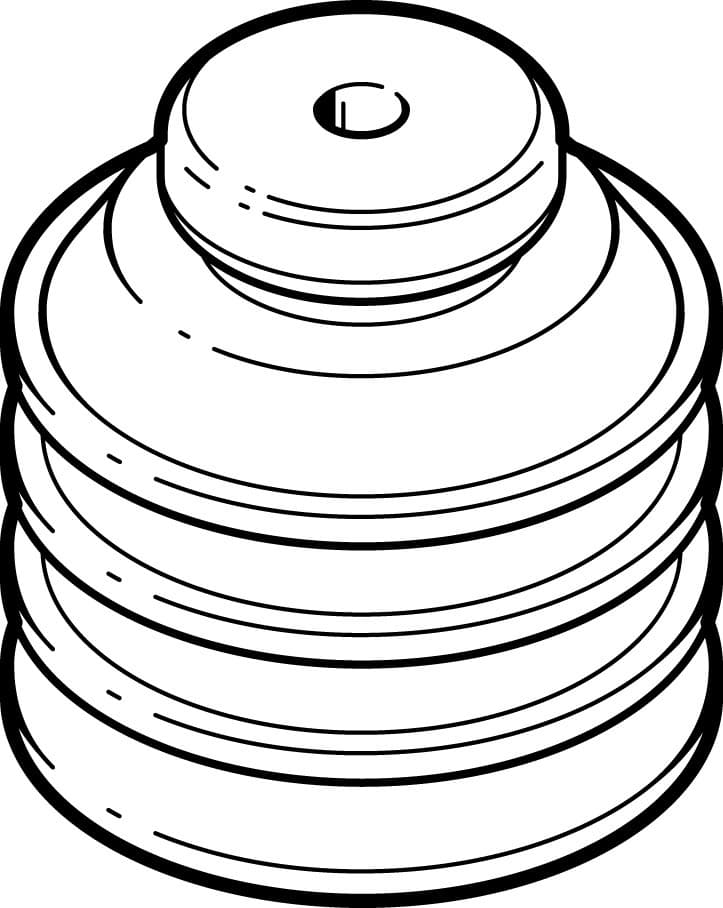

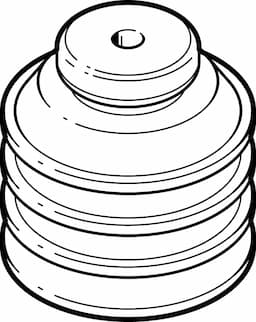

esv-40-cs
Selling Points
- 1The ESV-40-CS features a 12.8 mm height compensator, ensuring consistent suction performance across different workpiece heights.
- 2Made from VMQ (silicone) material, this suction cup is compliant with RoHS regulations and suitable for use in the food industry, adhering to ISO 8573-1:2010 standards.
- 3The suction cup can be mounted in any position, providing flexibility in various application setups.
- 4With a nominal operating pressure of -70 kPa, the ESV-40-CS offers a holding force of 42.4 N, ensuring reliable grip on workpieces.
- 5Operating within an ambient temperature range of -30 °C to 180 °C, this suction cup is suitable for diverse environments and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 12.8mm | Min. workpiece radius | 100mm |
Suction cup diameter | 40mm | Suction cup volume | 19.72cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 3.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
Holding force at nominal operating pressure | 42.4N | Product weight | 13g |
Color | Transparent | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 191076 |
Specifications may be subject to change without notice
