Product Model

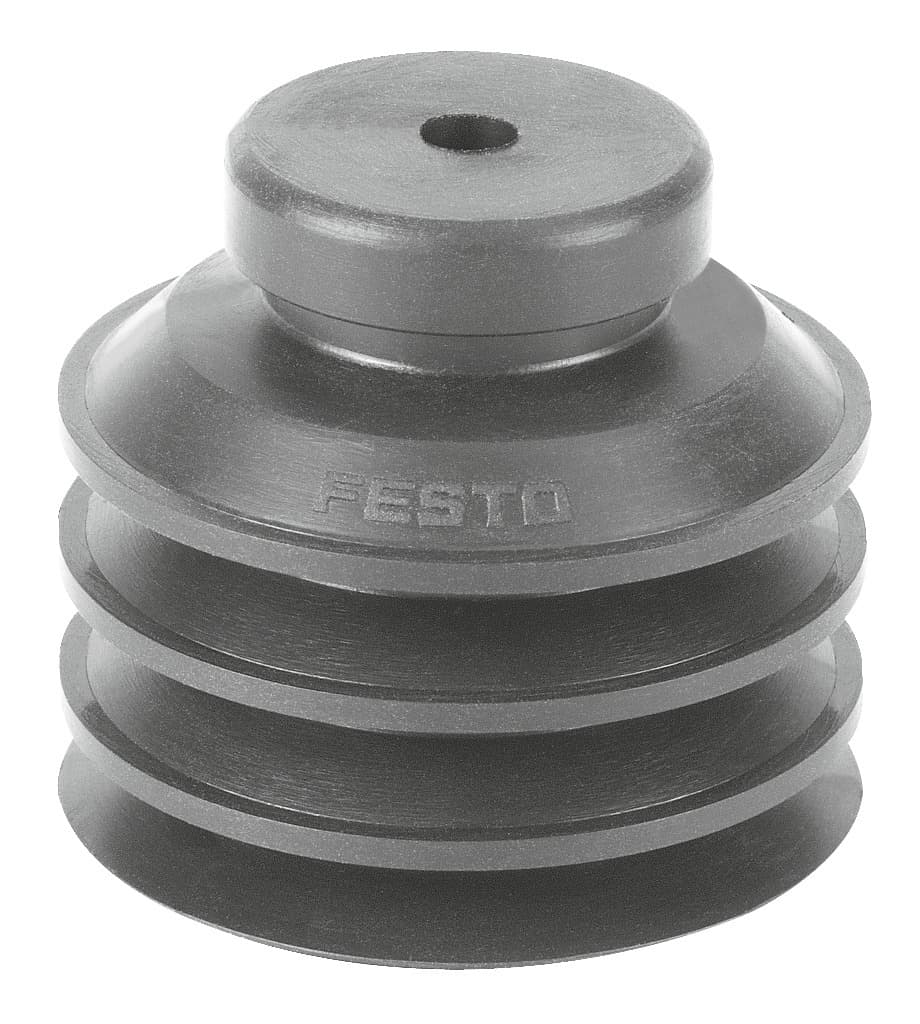

esv-40-ef
Selling Points
- 1The Festo ESV-40-EF suction cup offers corrosion resistance class 1 according to Festo standard 940 070, making it ideal for applications requiring low corrosion resistance.
- 2With a temperature range of -30°C to +180°C, this suction cup can handle a wide variety of environments, ensuring reliable performance in various industrial settings.
- 3The ESV-40-EF features a suction cup diameter of 40 mm and a suction cup volume of 3.733 cm³, providing a strong and efficient grip for various workpieces.
- 4This suction cup is suitable for use with food and meets the LABS (PWIS) conformity and VDMA24364 zone III standards, ensuring it is safe for use in food handling applications.
- 5The Festo ESV-40-EF is made from VMQ (silicone), which provides excellent durability and resistance to various environmental conditions, ensuring a long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 80mm | Suction cup diameter | 40mm |
Suction cup volume | 3.733cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 67.6N |
Product weight | 8g | Color | Gray |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | FPM | Manufacturer ID | 191034 |
Specifications may be subject to change without notice
