Product Model
esv-50-ef
Selling Points

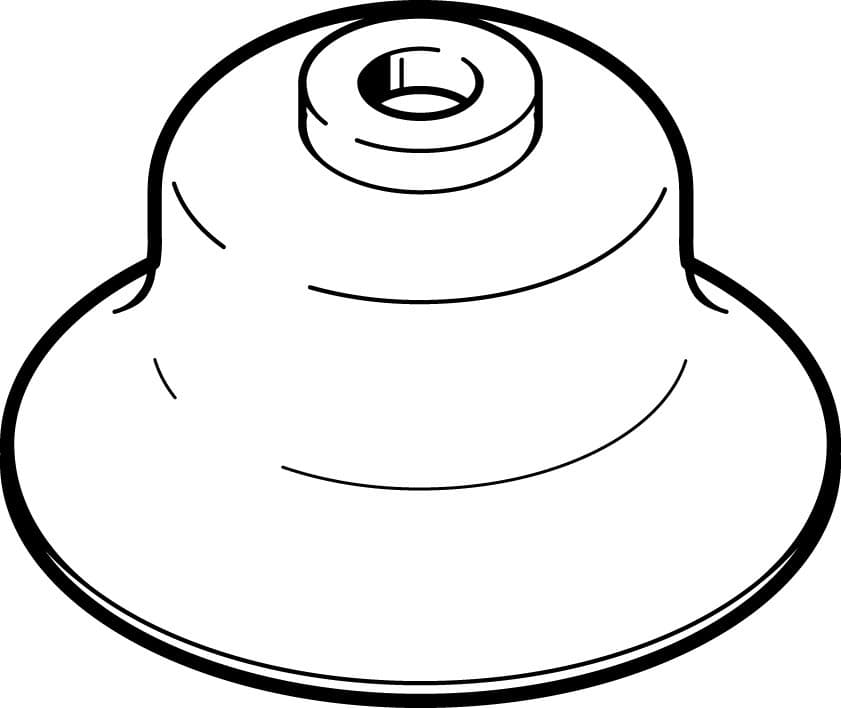

- 1The Festo ESV-50-EF vacuum suction cup is designed with a round, extra-deep shape, ensuring a strong and secure hold on various workpieces.
- 2This suction cup features a minimum workpiece radius of 100 mm and a suction cup diameter of 50 mm, making it versatile for different applications.
- 3The ESV-50-EF offers a high retention force at nominal operating pressure of 103.6 N, providing reliable and consistent performance.
- 4The product is made from FPM (Fluoropolymer) material, ensuring excellent corrosion resistance and durability.
- 5The Festo ESV-50-EF is a wearing part, easily replaceable, which simplifies maintenance and reduces downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 100mm | Suction cup diameter | 50mm |
Suction cup volume | 8.168cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 200°C | Holding force at nominal operating pressure | 103.6N |
Product weight | 12.6g | Color | Gray |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | FPM | Manufacturer ID | 191038 |
Specifications may be subject to change without notice
