Product Model
esv-60-en
Selling Points

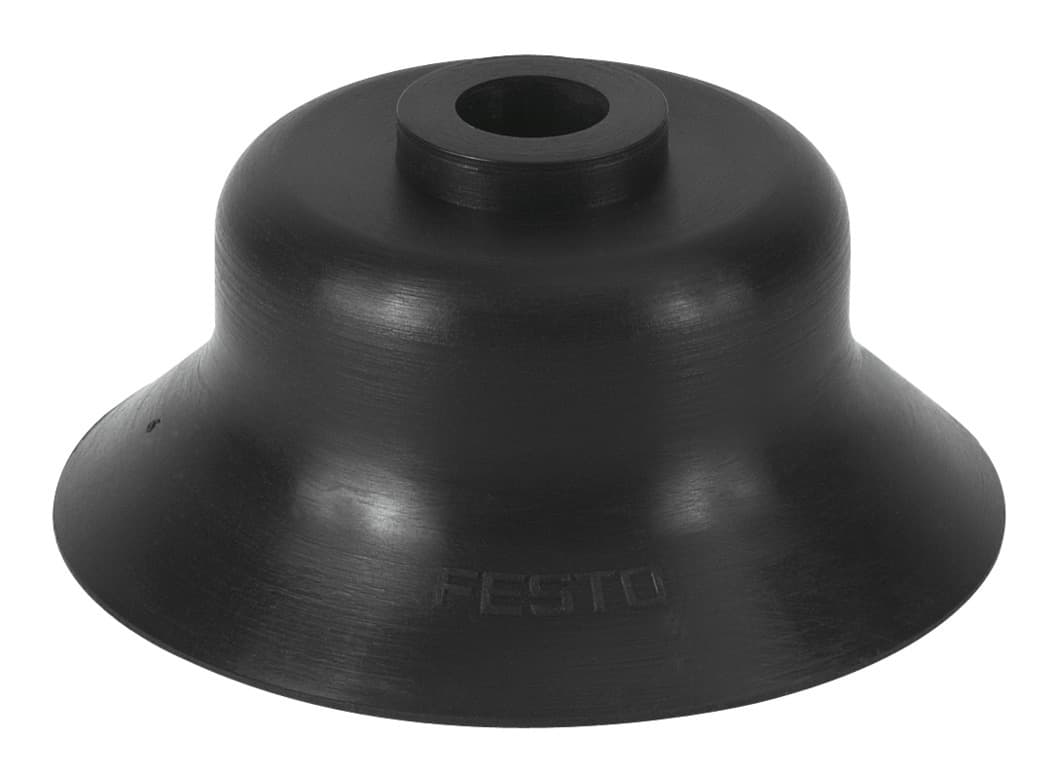

- 1The Festo ESV-60-EN suction cup offers a high retention force of 162.5 N, ensuring reliable gripping even in challenging conditions.
- 2Made from NBR material, this suction cup is food-safe and compliant with RoHS regulations, making it suitable for use in the food industry.
- 3The ESV-60-EN can be mounted in any position, providing flexibility for various applications and workpiece configurations.
- 4This suction cup operates effectively within an ambient temperature range of -10°C to 70°C, ensuring performance in diverse environments.
- 5Designed as a wearing part, the ESV-60-EN is easily replaceable, reducing downtime and maintenance costs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 120mm | Suction cup diameter | 60mm |
Suction cup volume | 14.445cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 162.5N |
Product weight | 21g | Shore hardness | 60 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | NBR |
Manufacturer ID | 191039 |
Specifications may be subject to change without notice
