Product Model
esv-80-bs
Selling Points

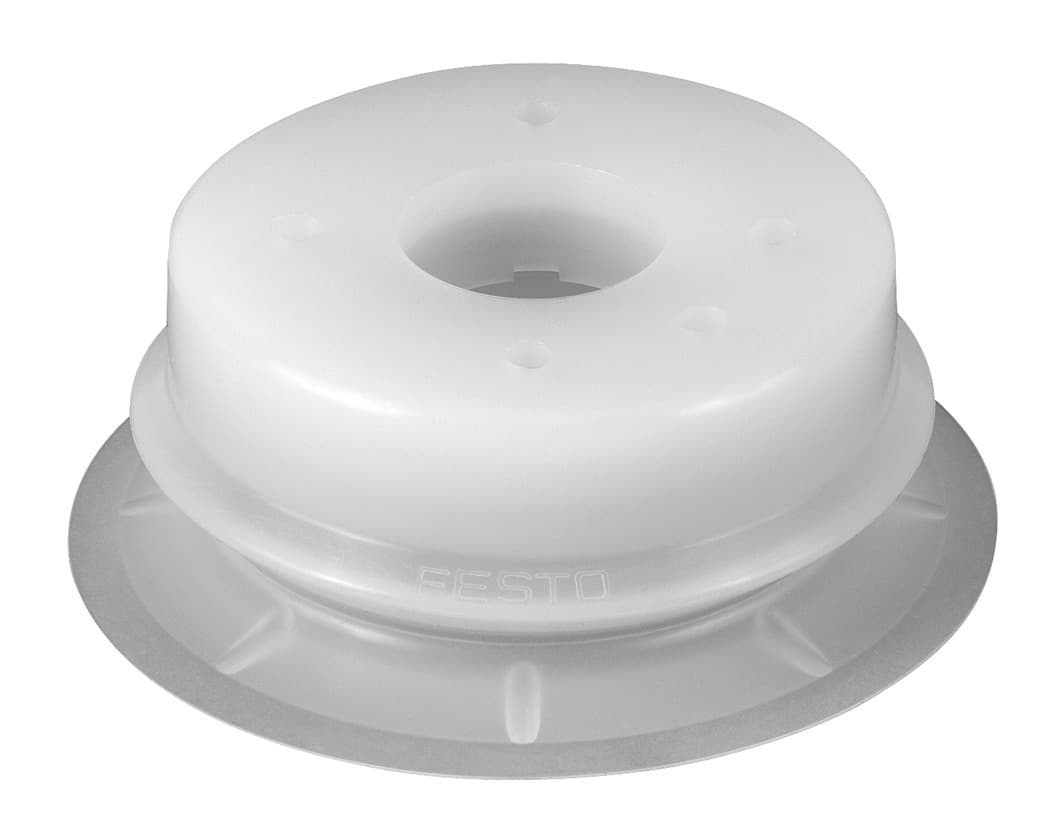

- 1The Festo ESV-80-BS vacuum suction cup is designed to operate in temperatures ranging from -30°C to 180°C, making it suitable for diverse industrial applications.
- 2This feature allows for precise positioning and secure holding of workpieces, ensuring consistent performance in various environments.
- 3The unique shape provides a strong holding force of 213.6 N at nominal operating pressure, ensuring reliable gripping.
- 4Compliant with VDMA24364 zone III and ISO 8573-1:2010, this suction cup is ideal for use in the food industry where cleanliness and safety are paramount.
- 5Made from VMQ (silicone), the Festo ESV-80-BS is RoHS-compliant and offers excellent durability and resistance to wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 10mm | Min. workpiece radius | 430mm |
Suction cup diameter | 80mm | Suction cup volume | 63.9cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
Holding force at nominal operating pressure | 213.6N | Product weight | 39g |
Color | Transparent | Shore hardness | 50 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
Manufacturer ID | 191068 |
Specifications may be subject to change without notice
