Product Model

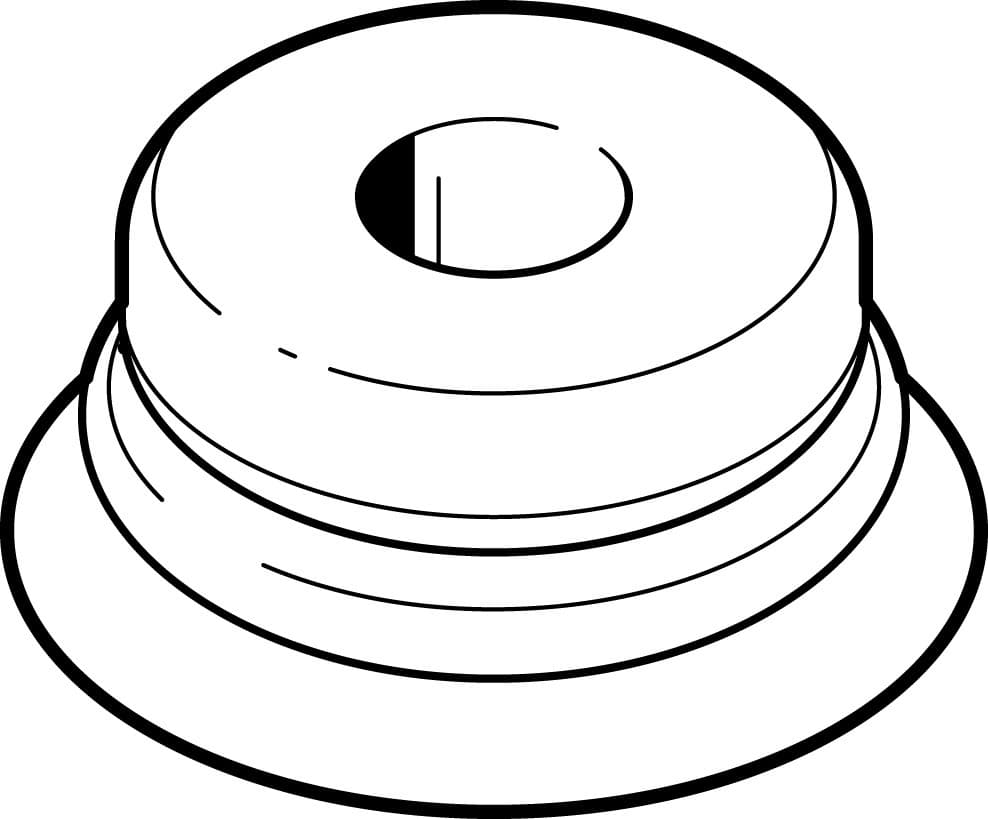

esv-80-bu
Selling Points
- 1The Festo ESV-80-BU vacuum suction cup offers a retention force of 213.6 N at nominal operating pressure, ensuring reliable and secure gripping of workpieces.
- 2Made from high-quality Polyurethane (PUR), this suction cup is designed to withstand various environmental conditions, including temperatures ranging from -20°C to 60°C.
- 3Suitable for use in the food industry, the ESV-80-BU meets the necessary standards for food-safe applications, as per manufacturer's declaration.
- 4The suction cup can be mounted via a vacuum port and is compatible with any assembly position, providing flexibility in various applications.
- 5Designed as a wearing part, the ESV-80-BU is easily replaceable, ensuring minimal downtime and efficient maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suction cup height compensation | 10mm | Min. workpiece radius | 430mm |
Suction cup diameter | 80mm | Suction cup volume | 63.9cm3 |
Connection position | Top | Mounting position | Any |
Symbol | 00991485 | Suction cup shape | Round bellows, 1.5 convolutions |
Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
Holding force at nominal operating pressure | 213.6N | Product weight | 39g |
Color | Blue | Shore hardness | 60 +/- 5 |
Note on materials | RoHS-compliant | Suction cup material | PUR |
Manufacturer ID | 191067 |
Specifications may be subject to change without notice
