Product Model
esv-80-en
Selling Points

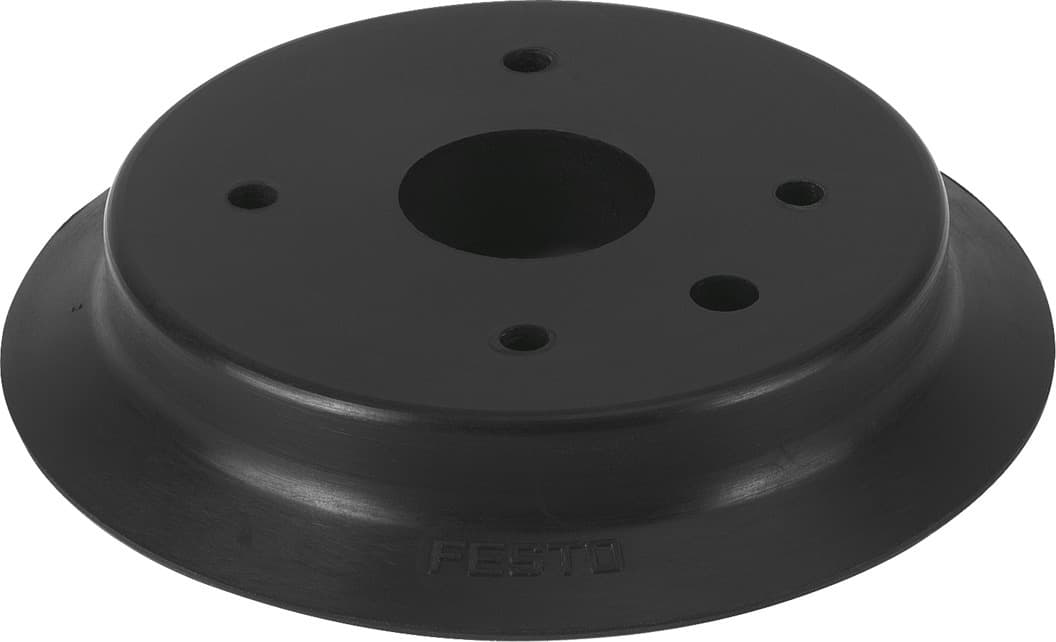

- 1The Festo ESV-80-EN suction cup features a round, extra-deep design with a diameter of 80 mm, ensuring a strong grip on various workpieces.
- 2With a suction cup volume of 44.18 cm³ and a minimum workpiece radius of 160 mm, this suction cup is ideal for diverse industrial applications.
- 3The ESV-80-EN operates within a wide ambient temperature range of -20 °C to 60 °C and is suitable for use with atmospheric air based on ISO 8573-1:2010.
- 4This suction cup offers a holding force of 275 N at nominal operating pressure, providing reliable and consistent performance.
- 5Made from high-quality PUR material, the Festo ESV-80-EN is RoHS-compliant and suitable for use in the food industry, ensuring safety and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Min. workpiece radius | 160mm | Suction cup diameter | 80mm |
Suction cup volume | 44.18cm3 | Connection position | Top |
Mounting position | Any | Symbol | 00991485 |
Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 275N |
Product weight | 41g | Color | Black |
Shore hardness | 60 +/- 5 | Note on materials | RoHS-compliant |
Suction cup material | NBR | Manufacturer ID | 191043 |
Specifications may be subject to change without notice
