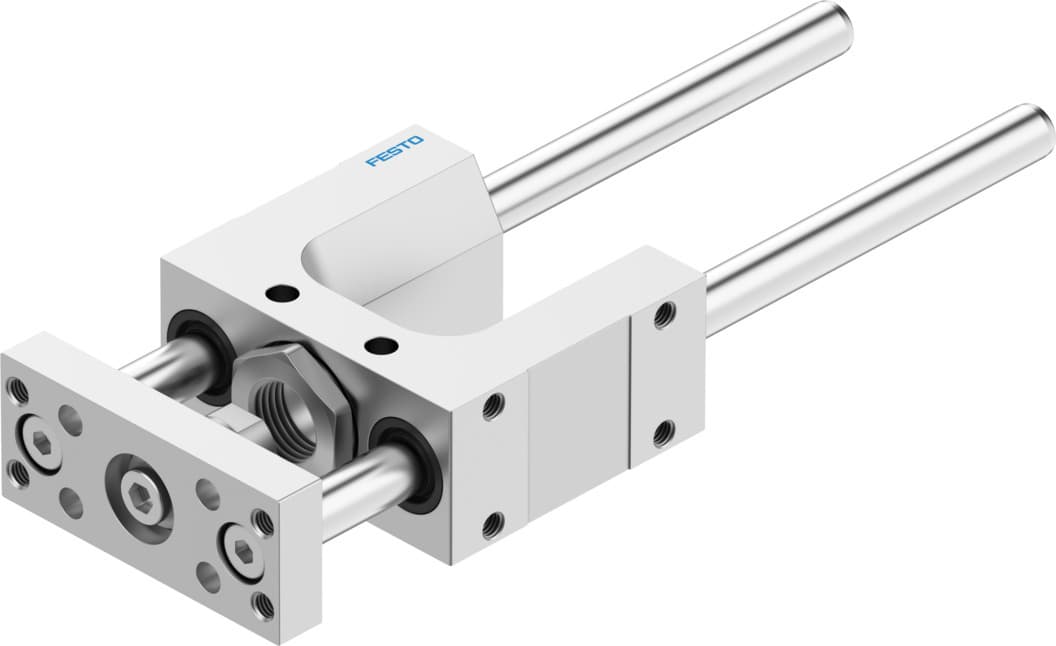

Fen-12/16-GF Linear Guide by Festo: Precision and Reliability

Selling Points

1The Fen-12/16-GF linear guide is engineered to provide precise movement and stability, ensuring high accuracy in your industrial applications.
2This guide unit offers optional mounting positions, allowing for flexible installation in various settings, including through internal threads.
3Built with a plain-bearing guide, the Fen-12/16-GF is designed to withstand harsh industrial conditions, including ambient temperatures from -20°C to 80°C.
4Compliant with VDMA 24364-B2-L, this guide unit ensures explosion protection and meets LABS (PWIS) conformity standards for safe operation.
5With a displacement force of 15 N and a stroke length of 1 mm to 200 mm, the Fen-12/16-GF delivers reliable performance in a variety of applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Size	12/16	Stroke	1mm 200mm
Mounting position	Any	Guide	Recirculating ball bearing guide
Structural design	Guide	Explosion prevention and protection	Observe the information on the certificate
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-20°C 80°C
Max. force Fy	520N	Max. force Fy static	830N
Max. force Fz	520N	Max. force Fz static	830N
Max. torque Mx	12Nm	Max. static moment Mx	20Nm
Max. torque My	7Nm	Max. static moment My	12Nm
Max. torque Mz	7Nm	Max. static moment Mz	12Nm
Displacement force	15N	Additional moving mass per 10?mm stroke	12g
Basic weight with 0?mm stroke	429g	Additional weight per 10?mm stroke	12g
Center of gravity of moving mass with 0 mm stroke	40mm	Center of gravity of moving mass with 10 mm stroke	4.9mm
Type of mounting	With internal thread	Note on materials	RoHS-compliant
Material of guide component	Tempered steel	Housing material	Wrought aluminum alloy, anodized
Material of yoke plate	Wrought aluminum alloy, anodized	Manufacturer ID	33481

Specifications may be subject to change without notice
