Product Model

fen-20-200-gf

In Stock
Last updated: 2025/4/17

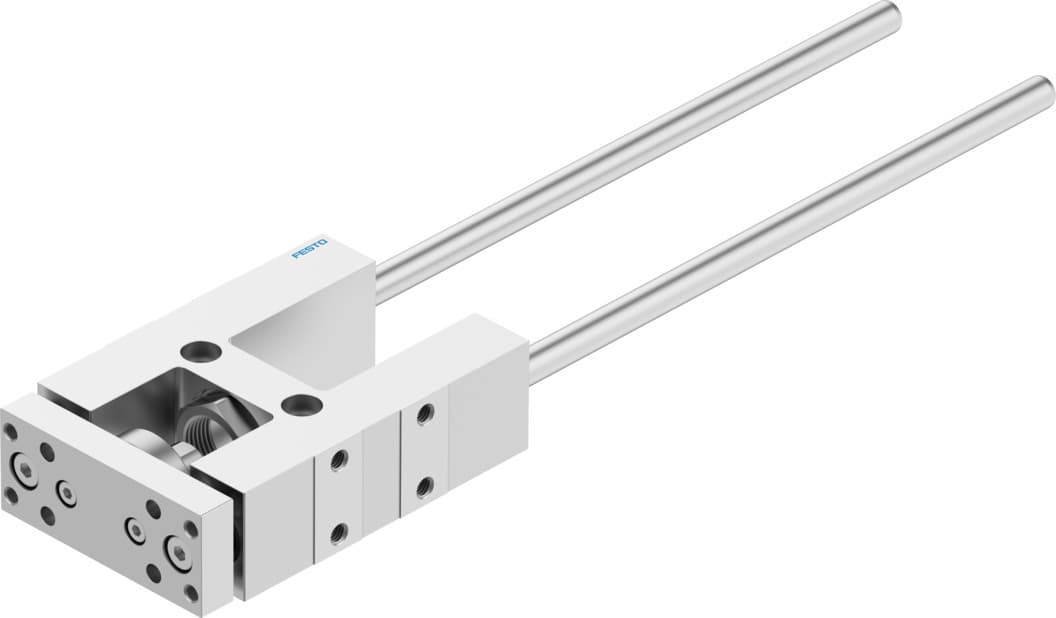

Festo fen-20-200-gf

Selling Points

  • 1High-Performance Guide Unit: The Festo FEN-20-200-GF features a guide unit designed to enhance the stability and precision of your pneumatic cylinder, ensuring smooth operation in various applications.
  • 2Plain Bearings for Smooth Operation: Equipped with plain bearings, this guide unit provides a low-friction design, allowing for continuous operation and minimizing wear and tear.
  • 3Secure Piston Rod Rotation: The FEN-20-200-GF is specifically designed to secure standard cylinders against piston rod rotation, ensuring that your system operates reliably and efficiently.
  • 4Versatile Application: Suitable for a wide range of applications, including those requiring high precision and stability, the FEN-20-200-GF is an essential component for any pneumatic system.
  • 5Durable Construction: Built with high-quality materials, the FEN-20-200-GF offers a durable construction that can withstand the demands of medium to heavy-duty applications.
Product Details
fen-20-200-gf
Festo

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Size
20
Stroke
200mm
Mounting position
Any
Guide
Sliding guide
Structural design
Guide
Explosion prevention and protection
Observe the information on the certificate
LABS (PWIS) conformity
VDMA24364-B2-L
Ambient temperature
-20°C 80°C
Displacement force
15N
Moving mass
509g
Product weight
1113g
Type of mounting
With internal thread
Note on materials
RoHS-compliant
Material of guide component
High-alloy steel
Housing material
Wrought aluminum alloy, anodized
Material of yoke plate
Wrought aluminum alloy, anodized
Manufacturer ID
8204050

Specifications may be subject to change without notice
