Product Model
fen-25-200-gf
Selling Points

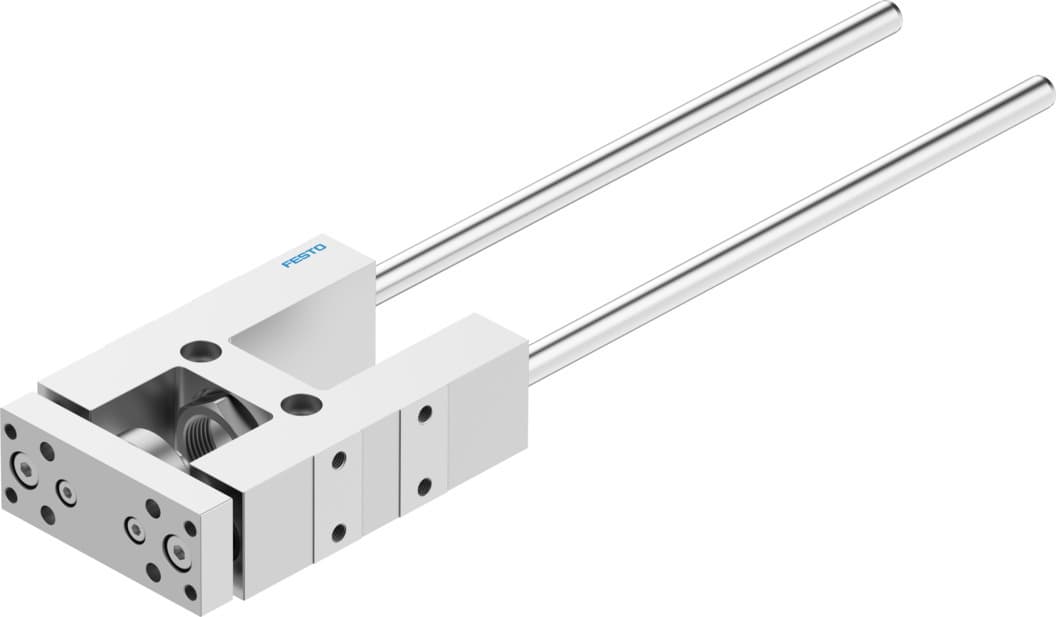

- 1The Festo FEN-25-200-GF pneumatic cylinder is designed for high precision and reliability, making it a top choice for various industrial applications.
- 2With a 25mm bore and 200mm stroke, this cylinder provides ample space for efficient movement and operation.
- 3The FEN-25-200-GF is built with a recirculating ball bearing guide (KF), ensuring smooth and consistent performance.
- 4This pneumatic cylinder is part of Festo's extensive range of standards-based cylinders, offering easy integration and compatibility.
- 5The Festo FEN-25-200-GF is known for its durability and long service life, making it a cost-effective solution for long-term use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Size | 25 | Stroke | 200mm |
Mounting position | Any | Guide | Sliding guide |
Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
Displacement force | 15N | Moving mass | 509g |
Product weight | 1106g | Type of mounting | With internal thread |
Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
Manufacturer ID | 8204057 |
Specifications may be subject to change without notice
